$9.29

SKU: 924148845026 Brand:

Description

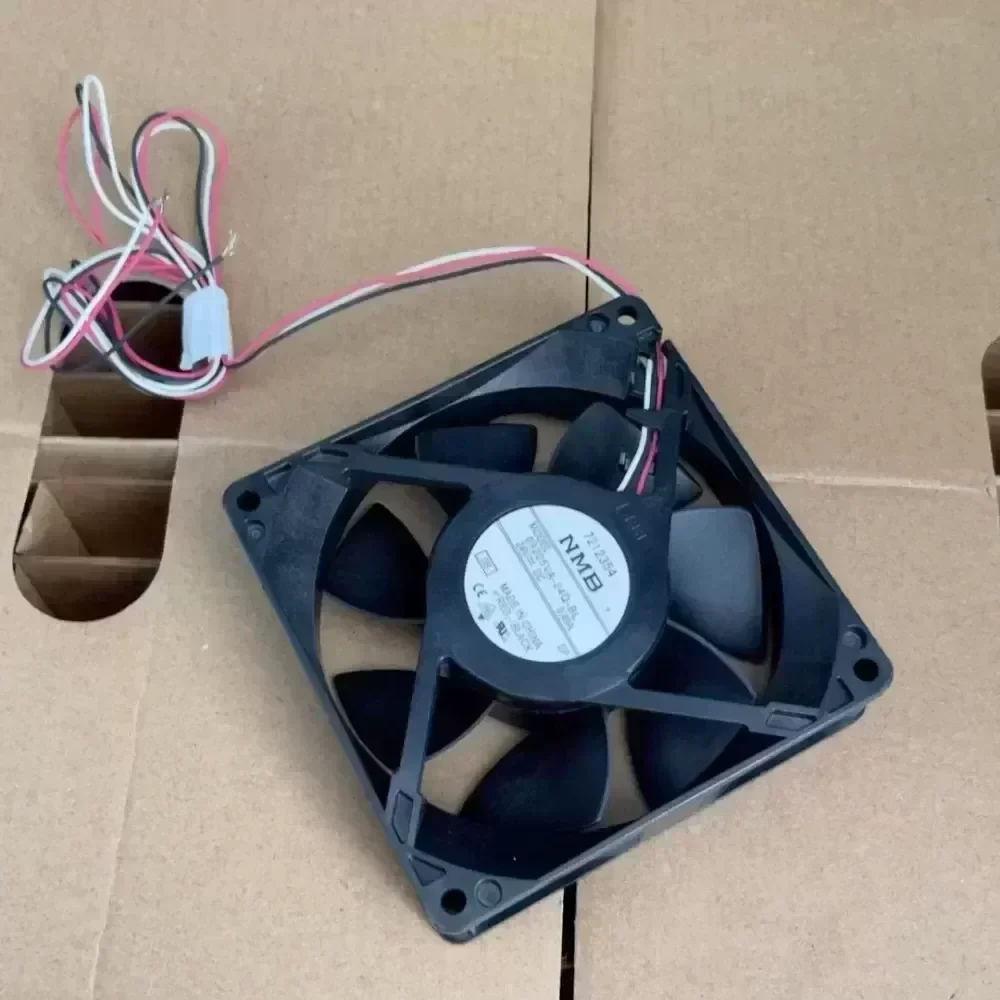

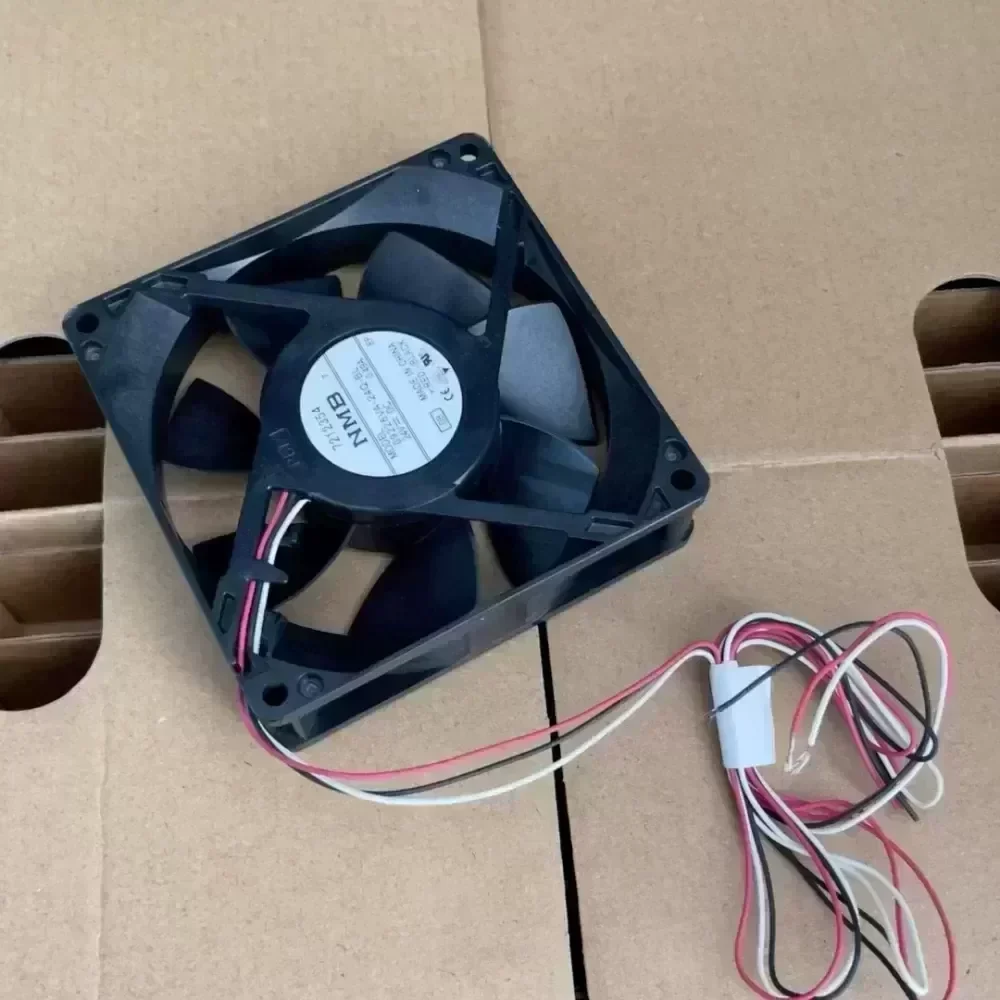

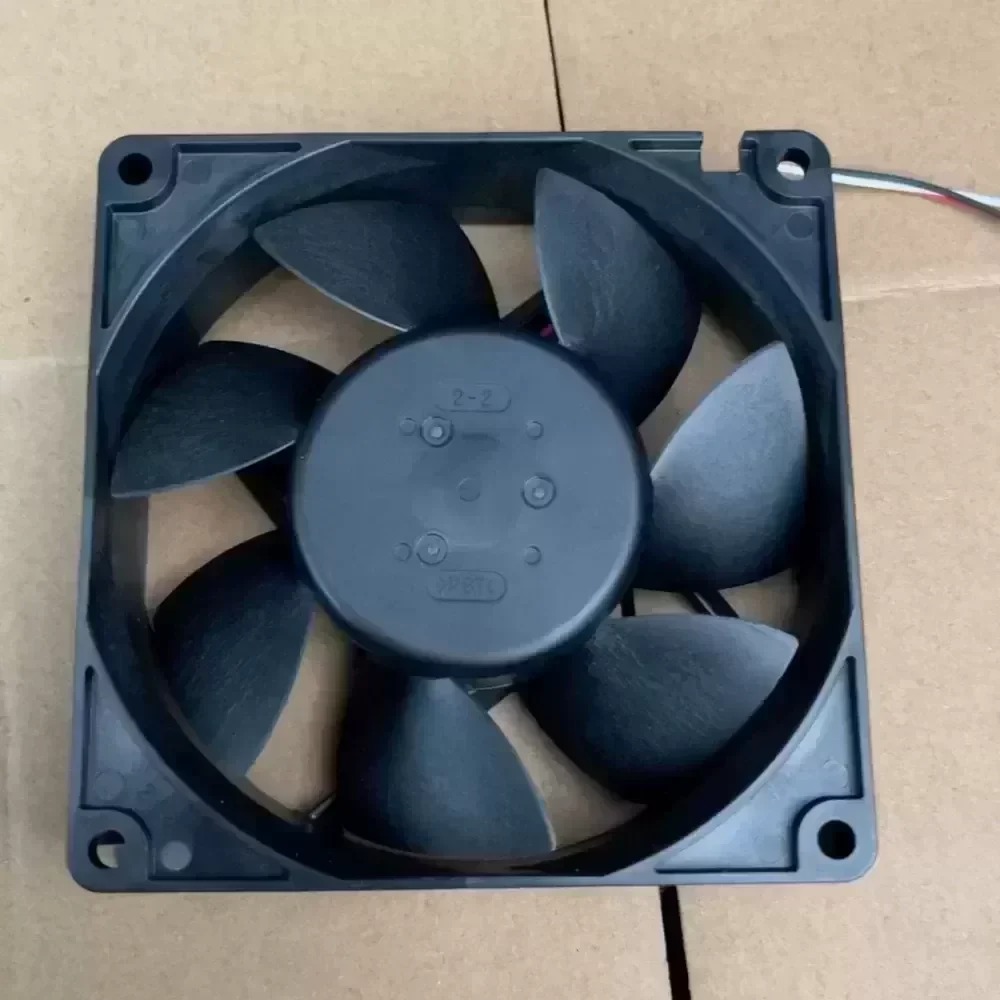

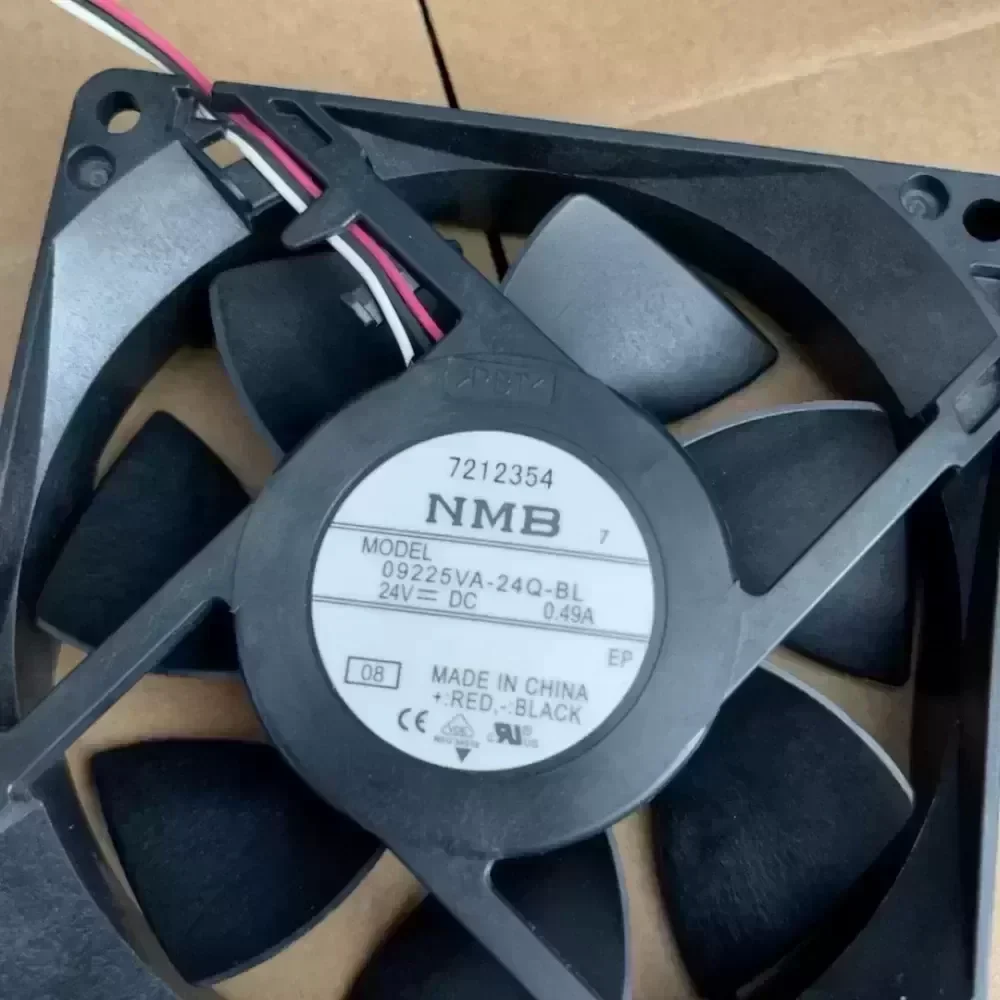

The NMB-MAT 09225VA-24Q-BL is a precision-engineered DC axial fan manufactured by MinebeaMitsumi, designed to deliver high-static pressure cooling for industrial electronics. This 92mm model integrates NMB’s proprietary dual ball bearing technology, ensuring exceptional durability and reduced friction during continuous operation. With a rated input of 24V DC and 0.49A, the unit generates significant airflow volume required to dissipate heat in high-impedance environments such as inverter chassis and server racks. The three-wire configuration provides a tachometer signal for speed monitoring, facilitating active thermal management and system fault detection.

Technical Specifications:
Manufacturer: NMB Technologies (MinebeaMitsumi)
Model Series: 09225VA
Part Number: 09225VA-24Q-BL

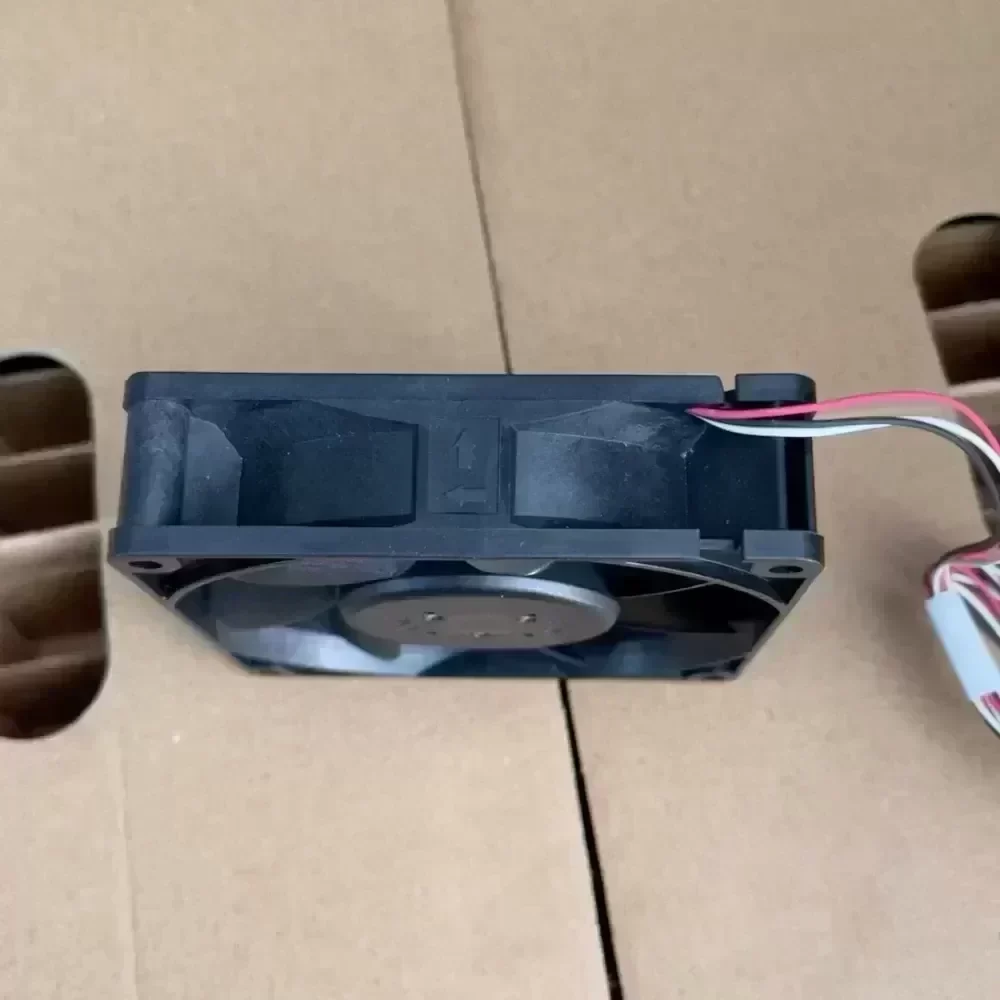

Frame Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 24V DC
Input Current: 0.49 A
Input Power: 11.76 W
Bearing System: Dual Precision Ball Bearing
Speed Class: High Speed (Q Code)
Airflow: Approx. 2.0 m³/min (70 CFM)
Static Pressure: High Pressure Profile
Termination: 3-Wire Lead (with Tachometer Output)
Housing Material: Reinforced Plastic (UL94V-0)
Impeller Material: Reinforced Plastic (UL94V-0)
Operating Temperature Range: -10°C to +70°C
Life Expectancy: 60,000+ Hours (L10)
Safety Certifications: UL, CSA, TUV, CE

Industrial Application Analysis:
The 09225VA-24Q-BL is specifically calibrated for the thermal regulation of power electronics, particularly within frequency inverters and industrial power supplies. The high-torque motor design overcomes system impedance caused by dense heatsink fins and component clustering, ensuring consistent air exchange. Original Engineering of the NMB bearing assembly minimizes axial play and vibration, preventing mechanical resonance within the chassis. Technical Compatibility is assured for legacy and modern systems requiring a standard 92mm footprint with speed sensor feedback. Please verify Lead Time for volume orders.

09225VA-24Q-BL NMB fan 9225

09225VA-24Q-BL NMB fan 9225

09225VA-24Q-BL NMB fan 9225

09225VA-24Q-BL NMB fan 9225

09225VA-24Q-BL NMB fan 9225

09225VA-24Q-BL NMB fan 9225

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
