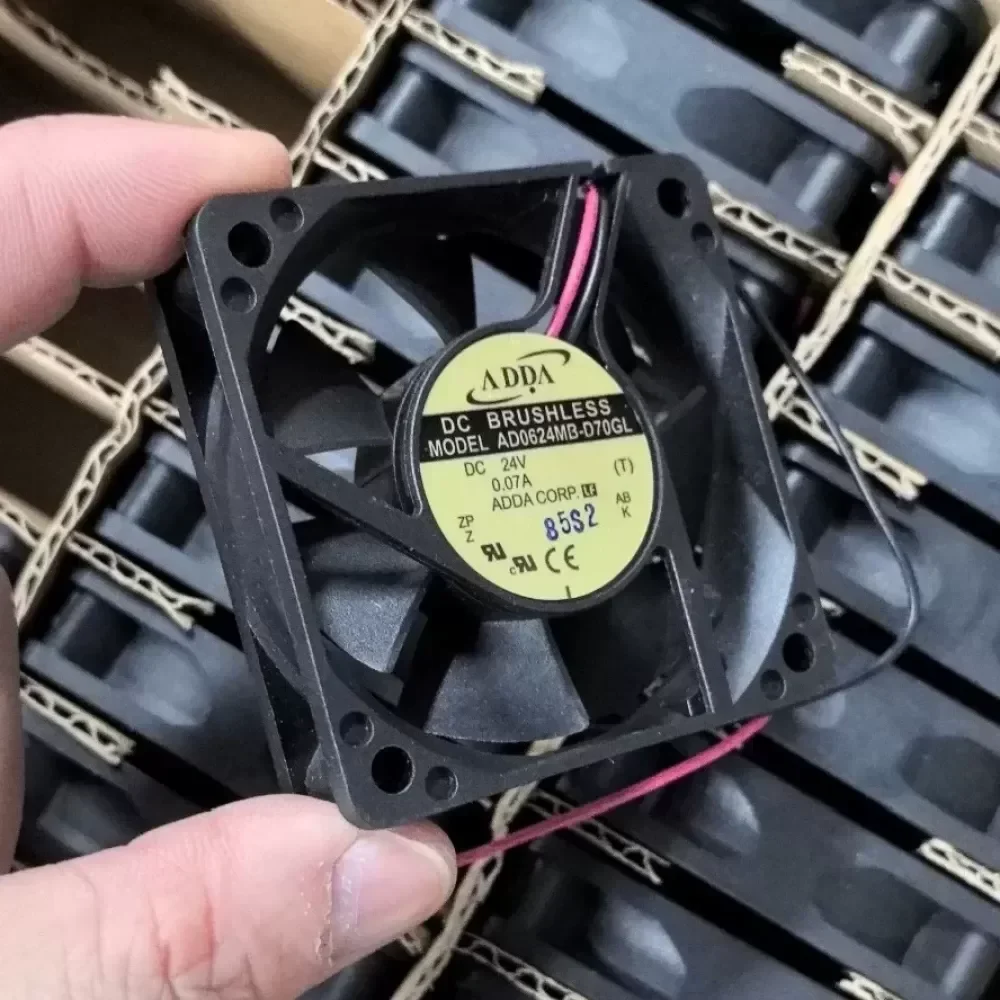

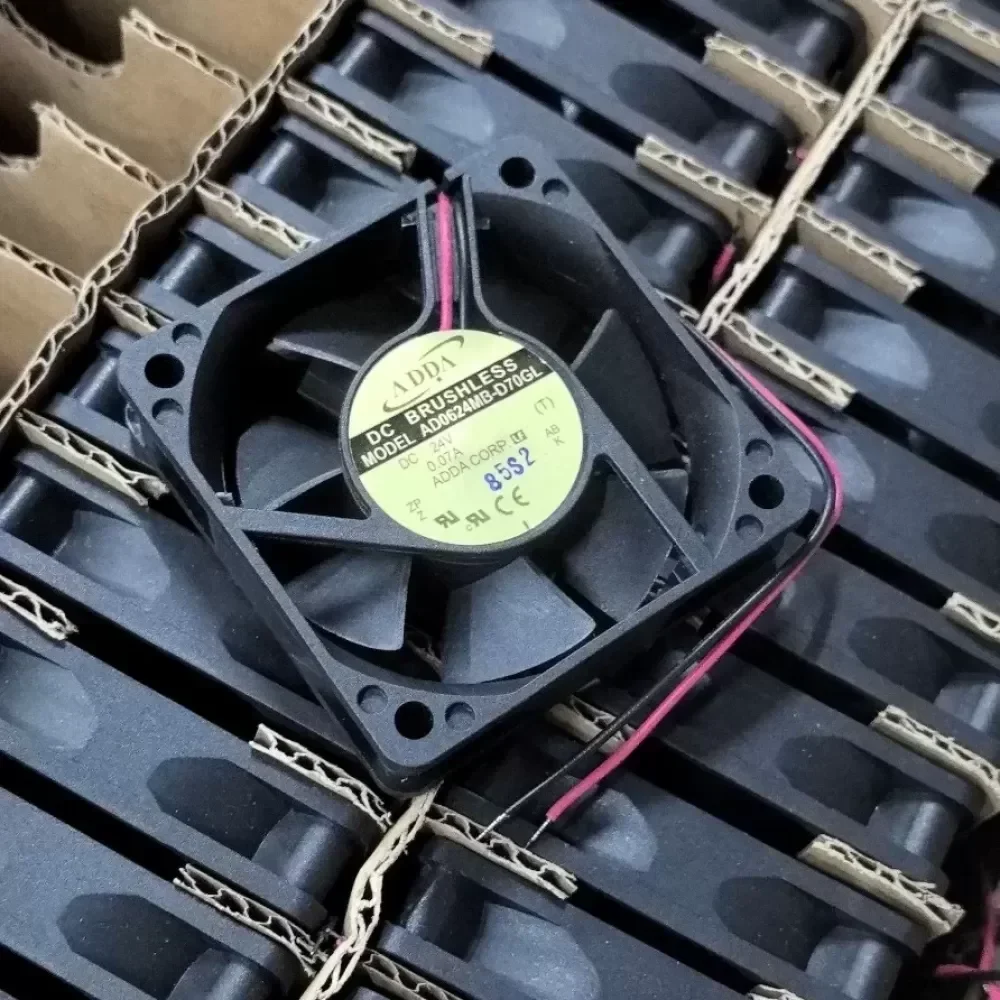

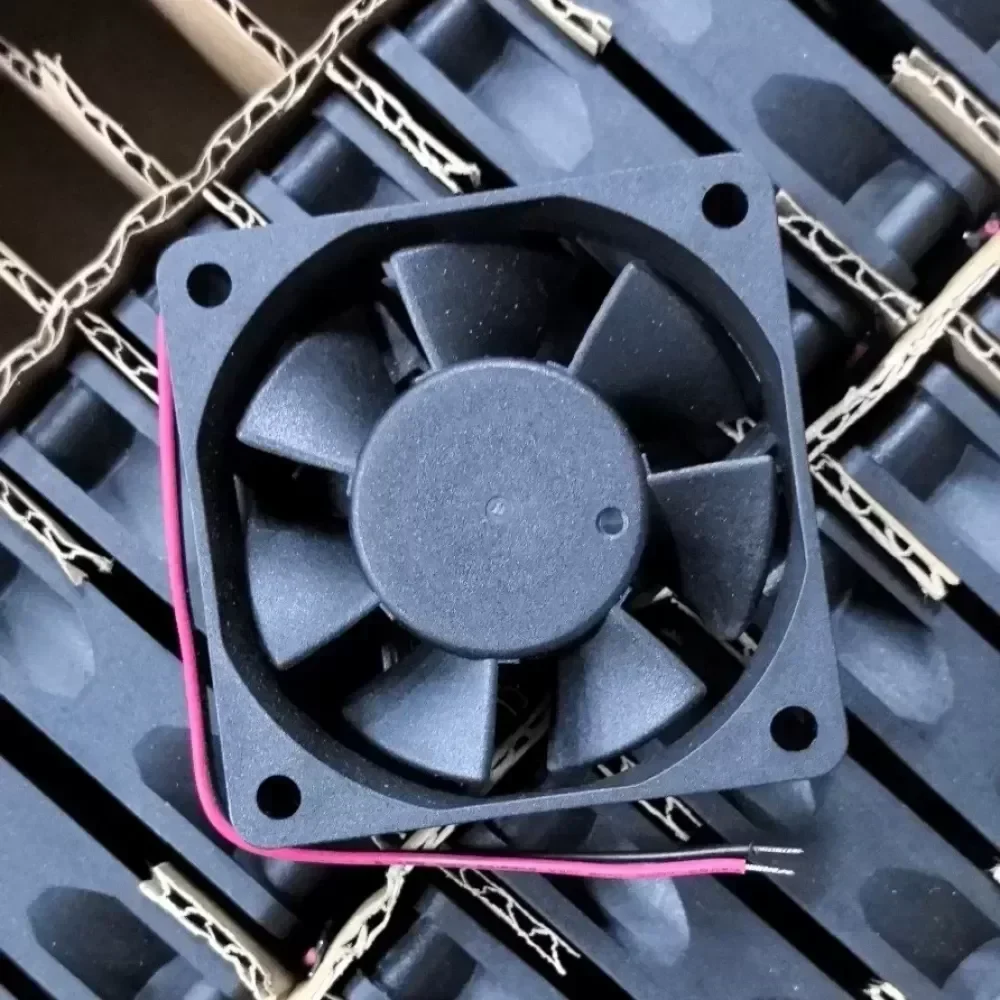

The ADDA AD0624MB-D70GL is a commercial-grade DC brushless axial fan engineered for high-reliability thermal management in compact industrial environments. Designed with Original Engineering standards, this unit ensures optimal airflow and thermal dissipation for continuous-duty applications.
Technical Specifications:
Brand: ADDA
Model Number: AD0624MB-D70GL
Fan Type: DC Brushless Axial Fan
Dimensions: 60 x 60 x 15 mm
Operating Voltage: 24V DC
Rated Current: 0.07A
Power Consumption: 1.68W
Bearing System: Dual Ball Bearing
Rated Speed: 3900 RPM ± 10%
Maximum Airflow: 0.41 m³/min
Acoustic Noise: 29 dB(A)
Operating Temperature: -10°C to +70°C
Weight: 35g
Housing Material: UL94V-0 Glass Filled Polyester
Impeller Material: UL94V-0 Glass Filled Polyester
Connection: Wire Leads
Application and Integration:
Technical Compatibility extends across a wide range of industrial applications, including programmable logic controller enclosures, telecommunications networking equipment, variable frequency drives, and embedded computing systems. The 15mm low-profile frame combined with the 24V DC input makes it strictly compatible with standard industrial control panel power buses. The dual ball bearing architecture prevents premature failure in high-vibration environments, solving critical overheating issues in densely packed electronic racks. We maintain optimized inventory to ensure minimal Lead Time for bulk industrial procurement and critical replacement cycles.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
