$3.71

SKU: 758016241349 Brand:

Description

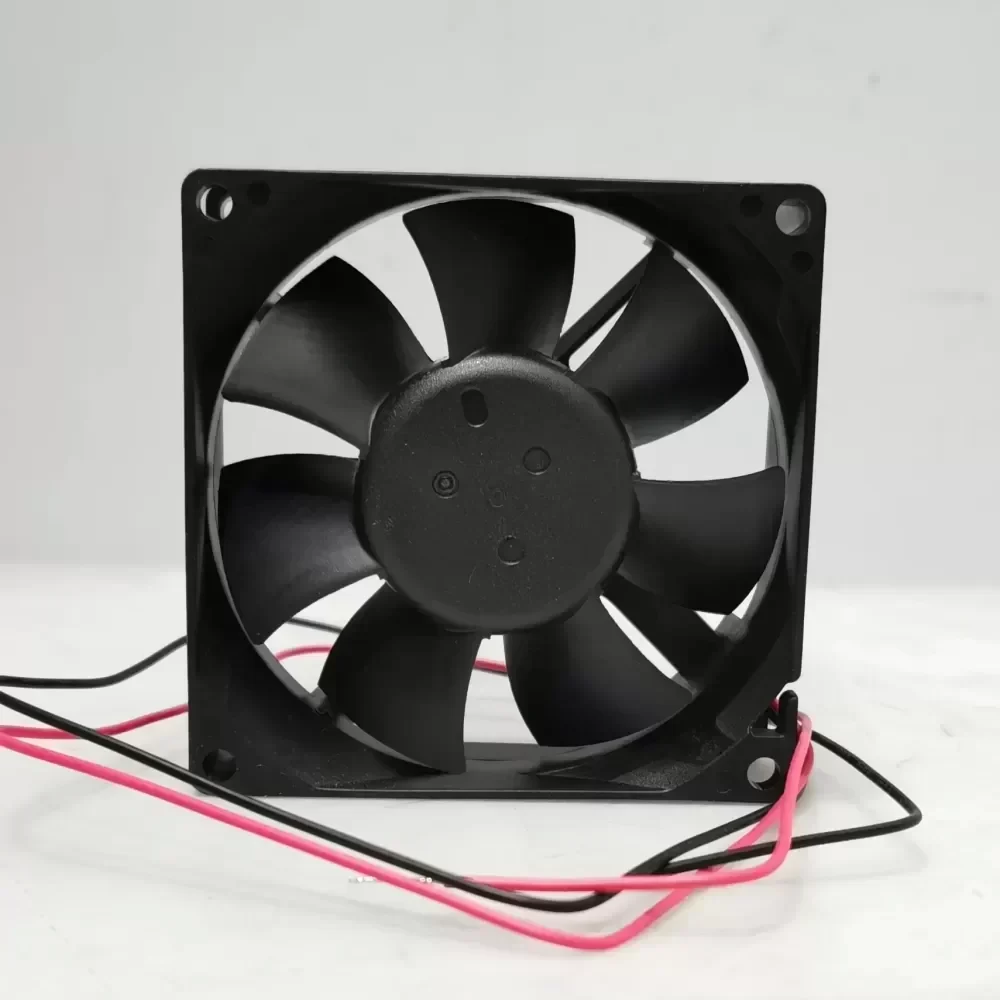

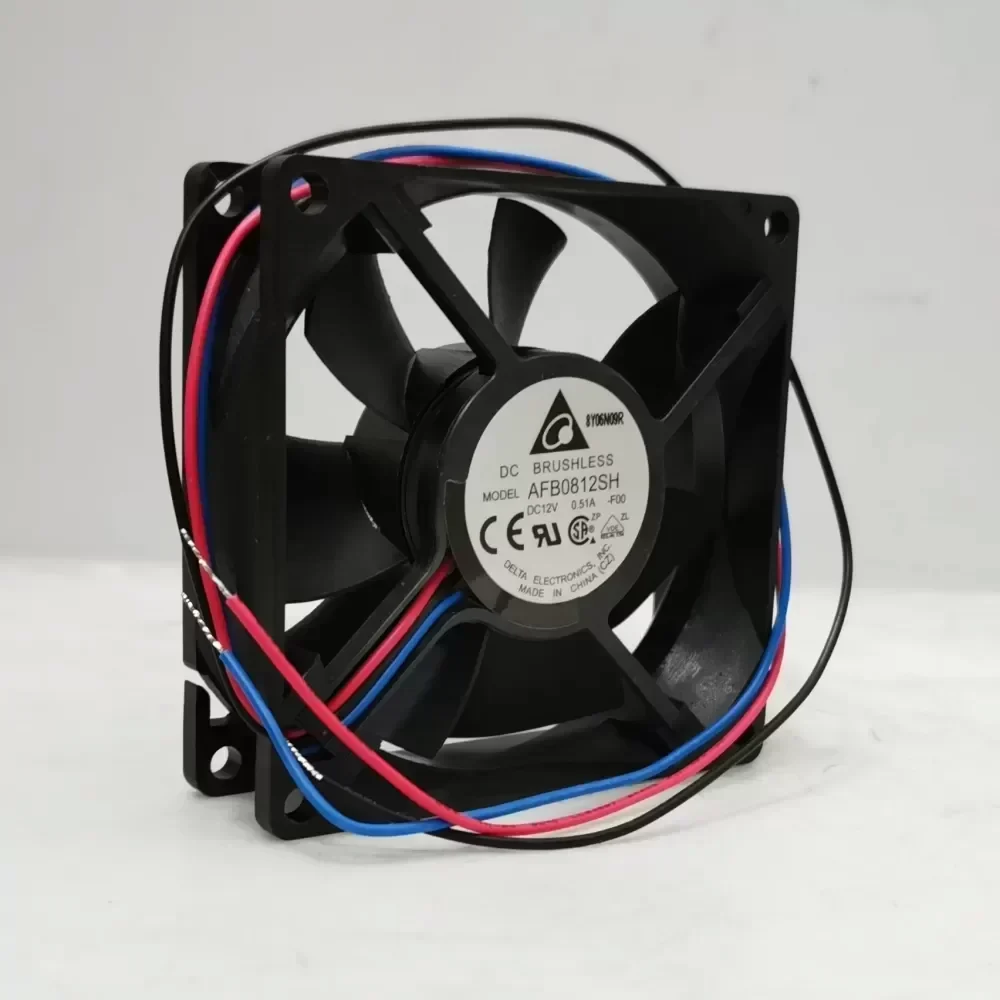

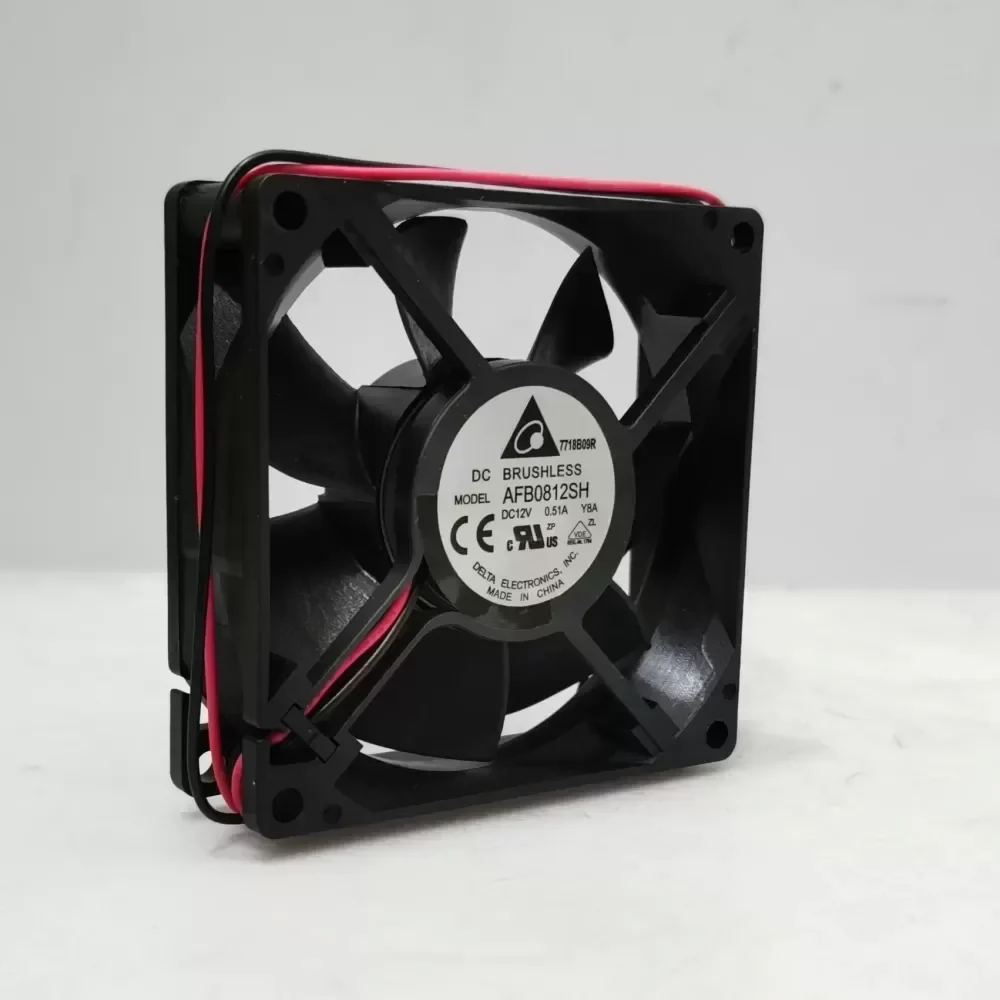

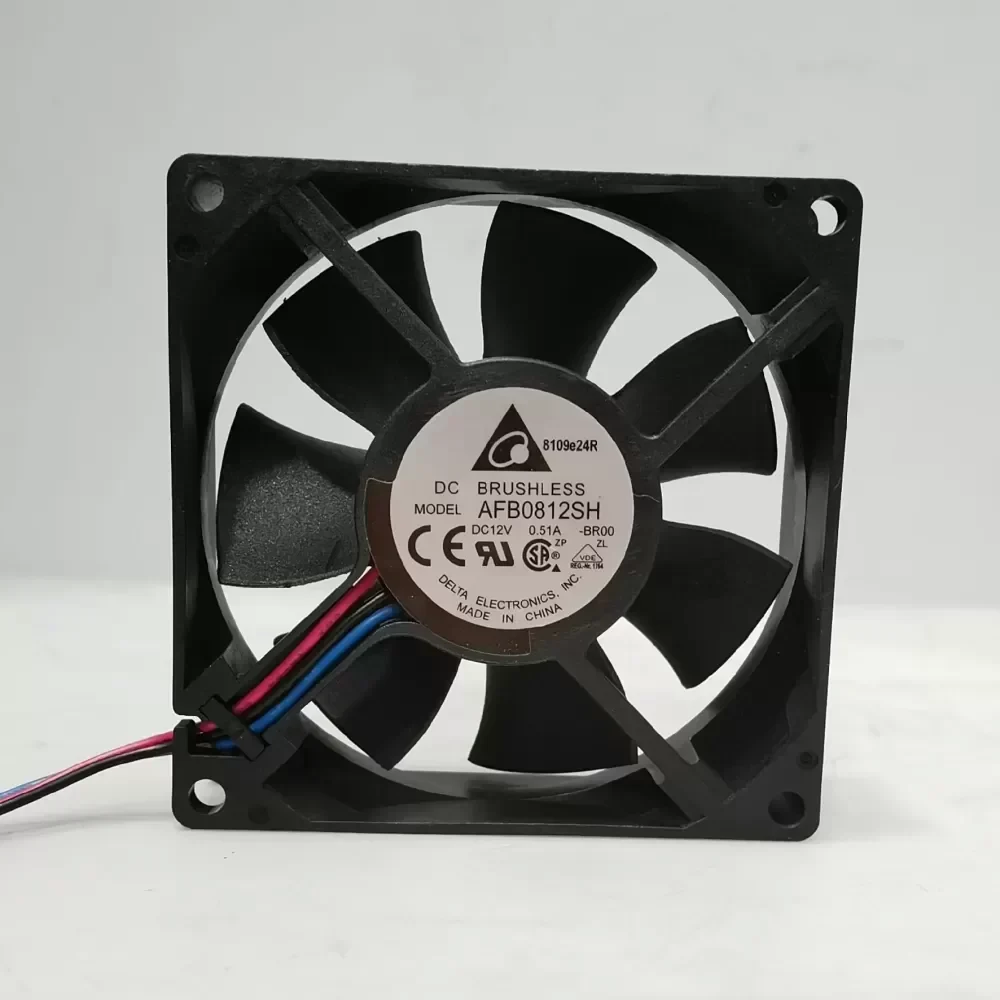

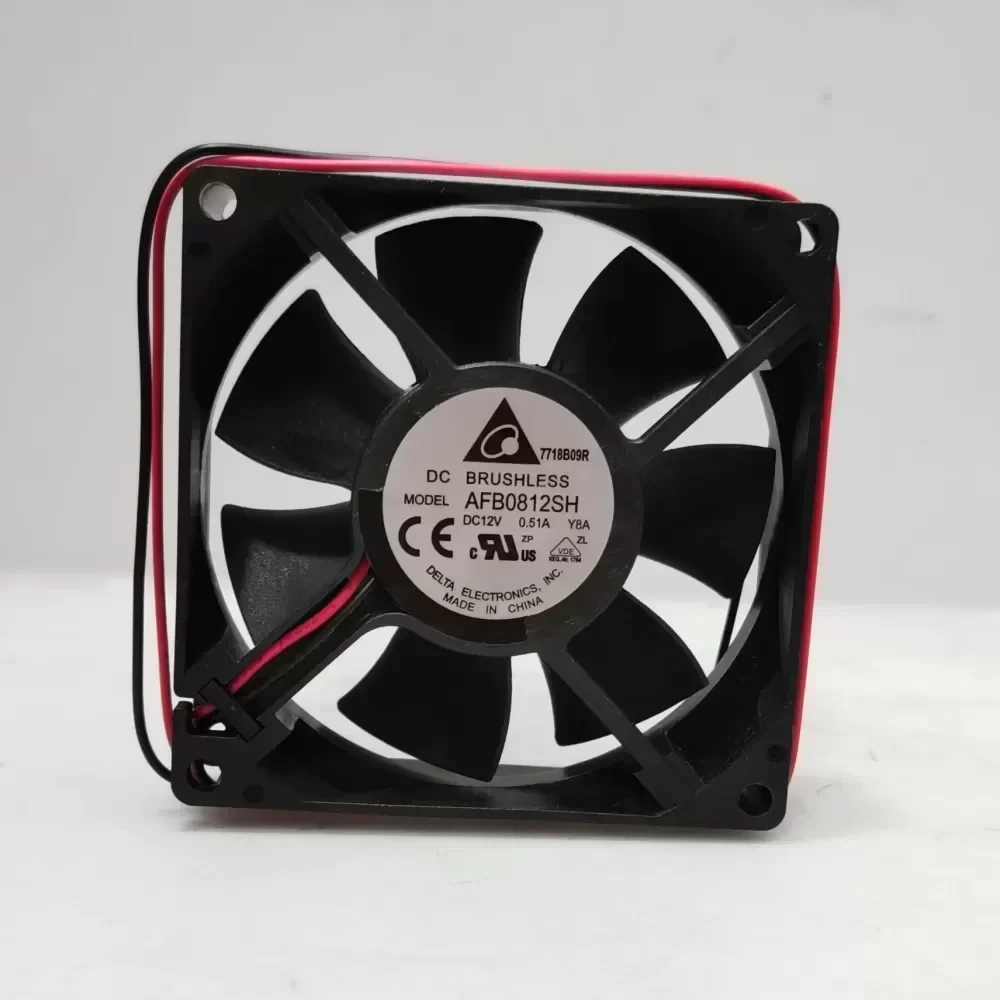

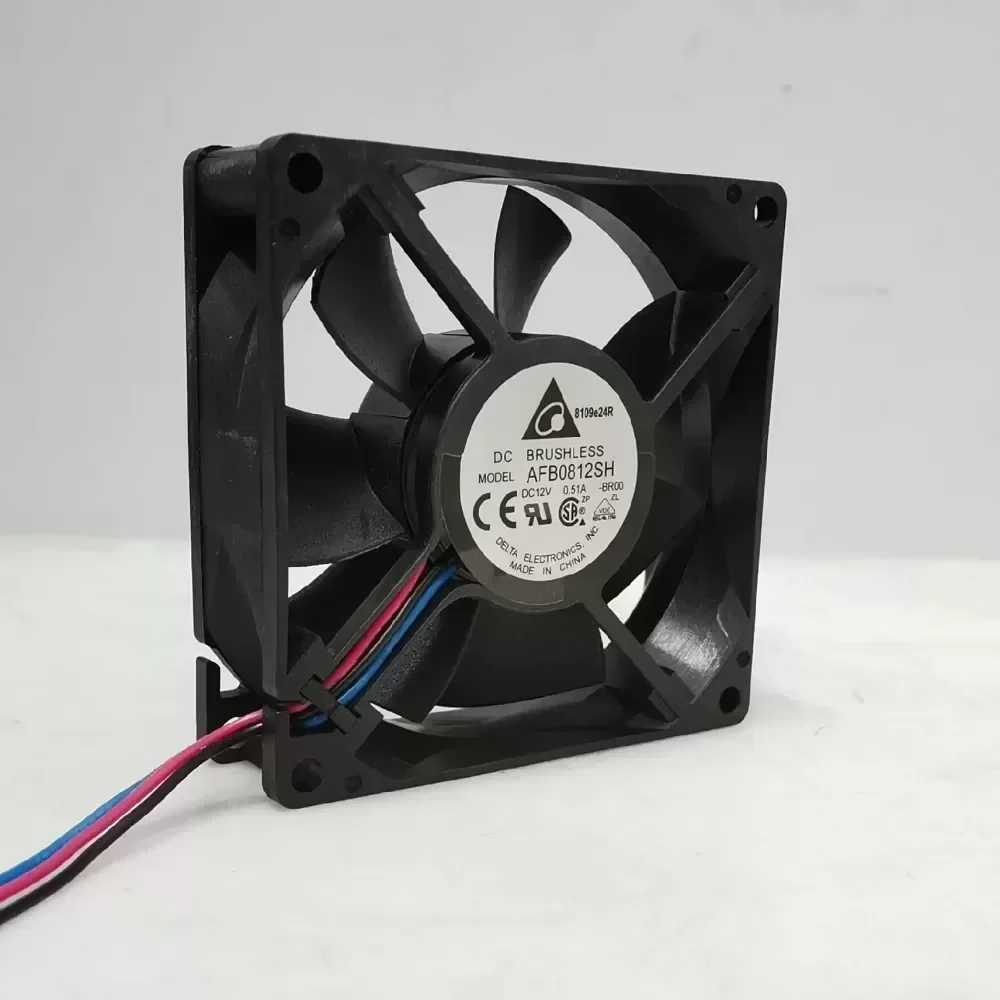

The Delta Electronics AFB0812SH is an industrial-grade DC axial cooling fan designed for high-density thermal management in continuous-duty environments. Engineered with a robust 80x80x25.4mm frame, this component delivers exceptional airflow and static pressure to mitigate thermal throttling in critical electronic enclosures.

Technical Specifications
Brand: Delta Electronics
Model Number: AFB0812SH
Dimensions: 80 x 80 x 25.4 mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.51A Max
Power Consumption: 6.12W Max
Rated Speed: 4000 ± 10% RPM
Maximum Airflow: 46.62 CFM (1.320 m³/min)
Maximum Static Pressure: 6.78 mmH2O
Acoustic Noise: 40.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Termination: 3-Wire Lead (Power, Ground, Alarm/Sensor)
Signal Output: Rotor Lock Alarm / Tachometer
Weight: 80.0 g
Operating Temperature: -10°C to 60°C
Life Expectancy: 70,000 hours at 40°C

Industrial Application and Compatibility
This cooling fan is specifically deployed in server chassis, telecom enclosures, and automated control cabinets where continuous heat dissipation is mandatory. The integrated 3-wire alarm system provides real-time feedback to system controllers, triggering immediate fail-safe protocols if rotor lock occurs. This ensures Technical Compatibility with advanced PLC and motherboard monitoring systems.

Procurement and Lifecycle
Maintaining Original Engineering standards, the AFB0812SH guarantees seamless drop-in replacement for existing 8025 form-factor fans. We optimize Lead Time for bulk and spare parts procurement, ensuring minimal downtime for critical infrastructure maintenance.

AFB0812SH Delta fan 8025/12V new 8cm

AFB0812SH Delta fan 8025/12V new 8cm

AFB0812SH Delta fan 8025/12V new 8cm

AFB0812SH Delta fan 8025/12V new 8cm

AFB0812SH Delta fan 8025/12V new 8cm

AFB0812SH Delta fan 8025/12V new 8cm

AFB0812SH Delta fan 8025/12V new 8cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
