Description

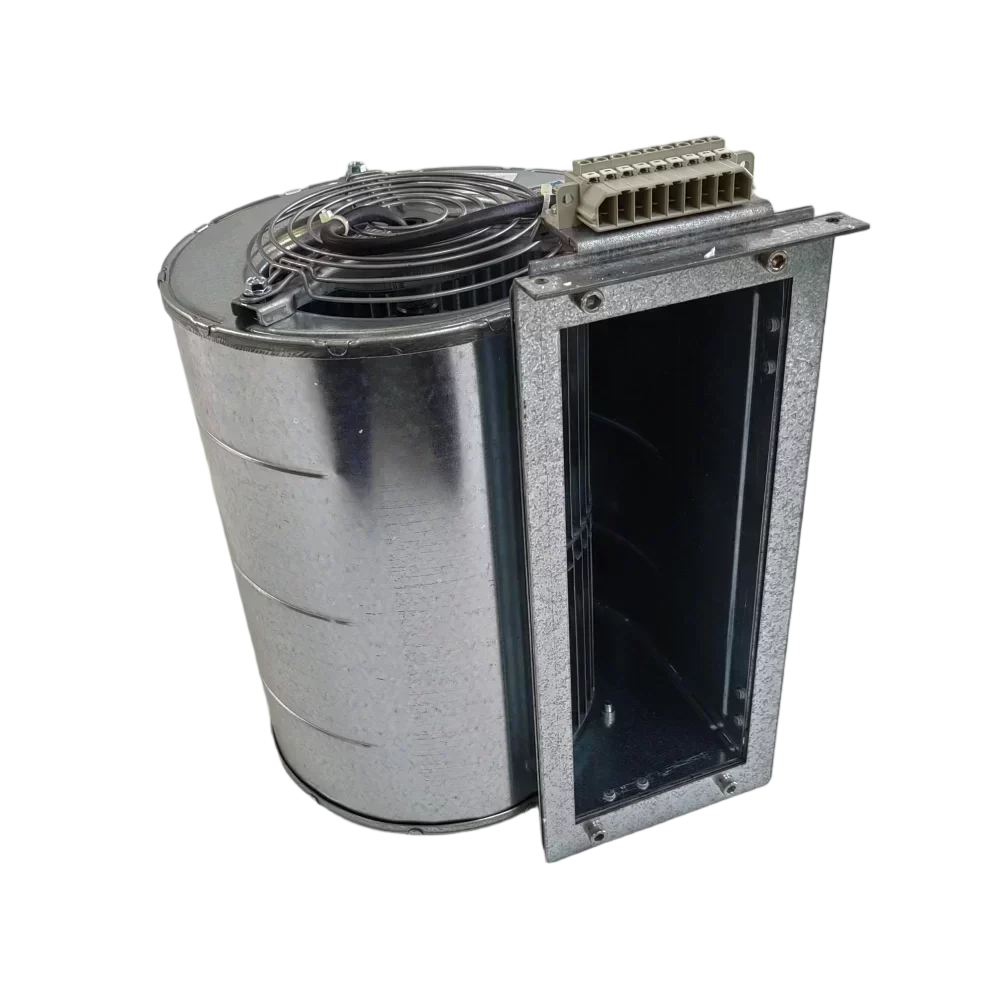

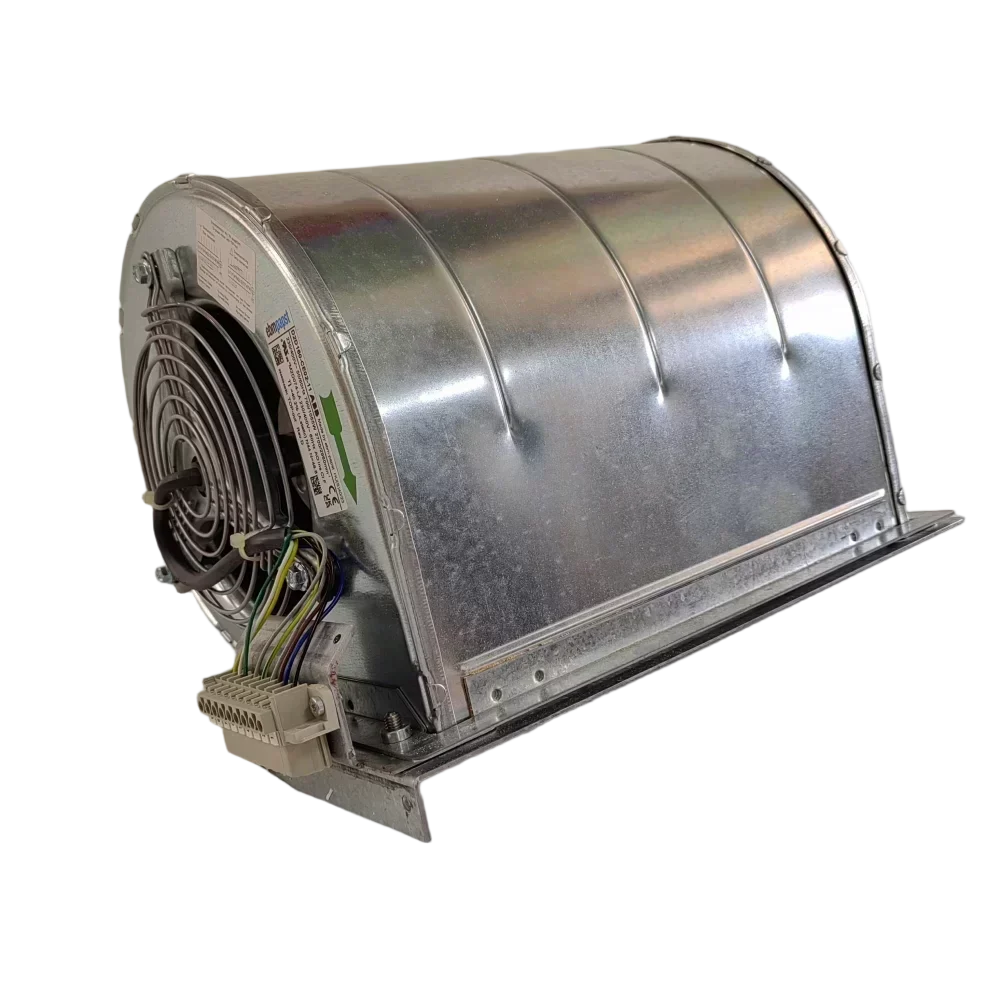

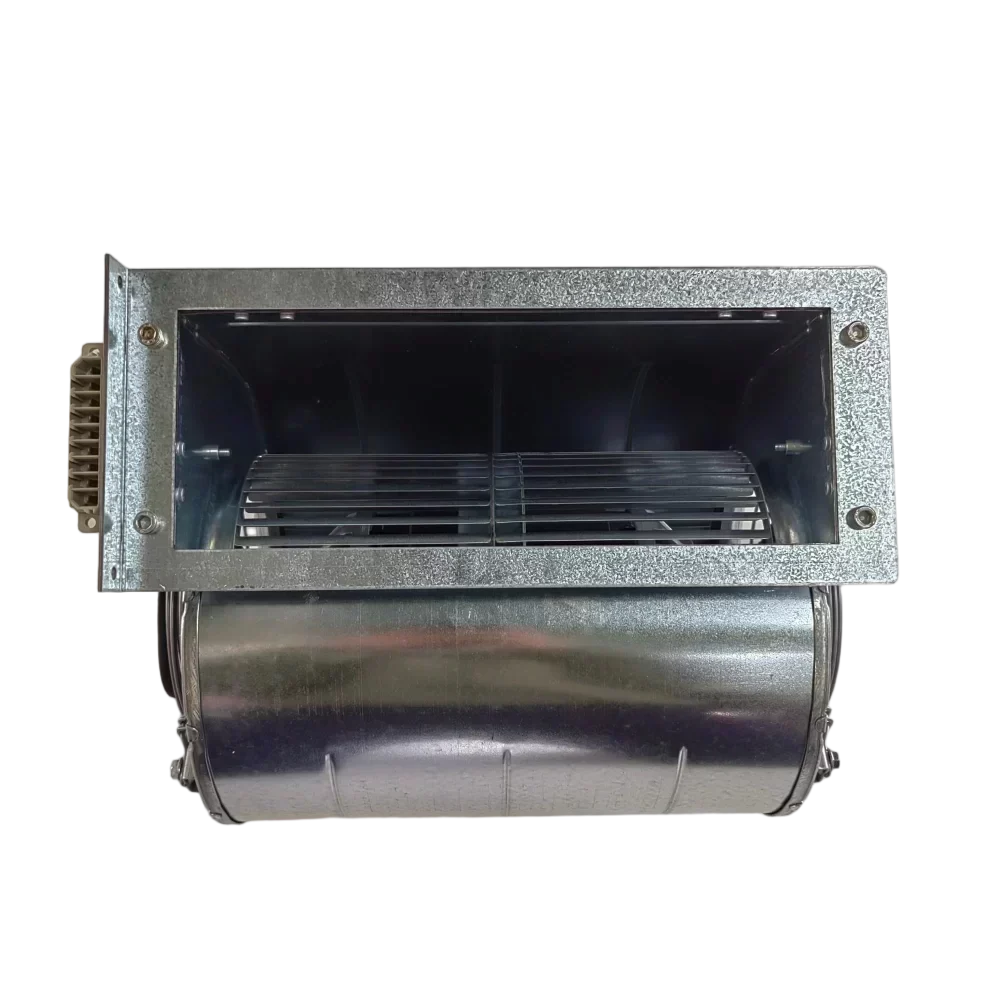

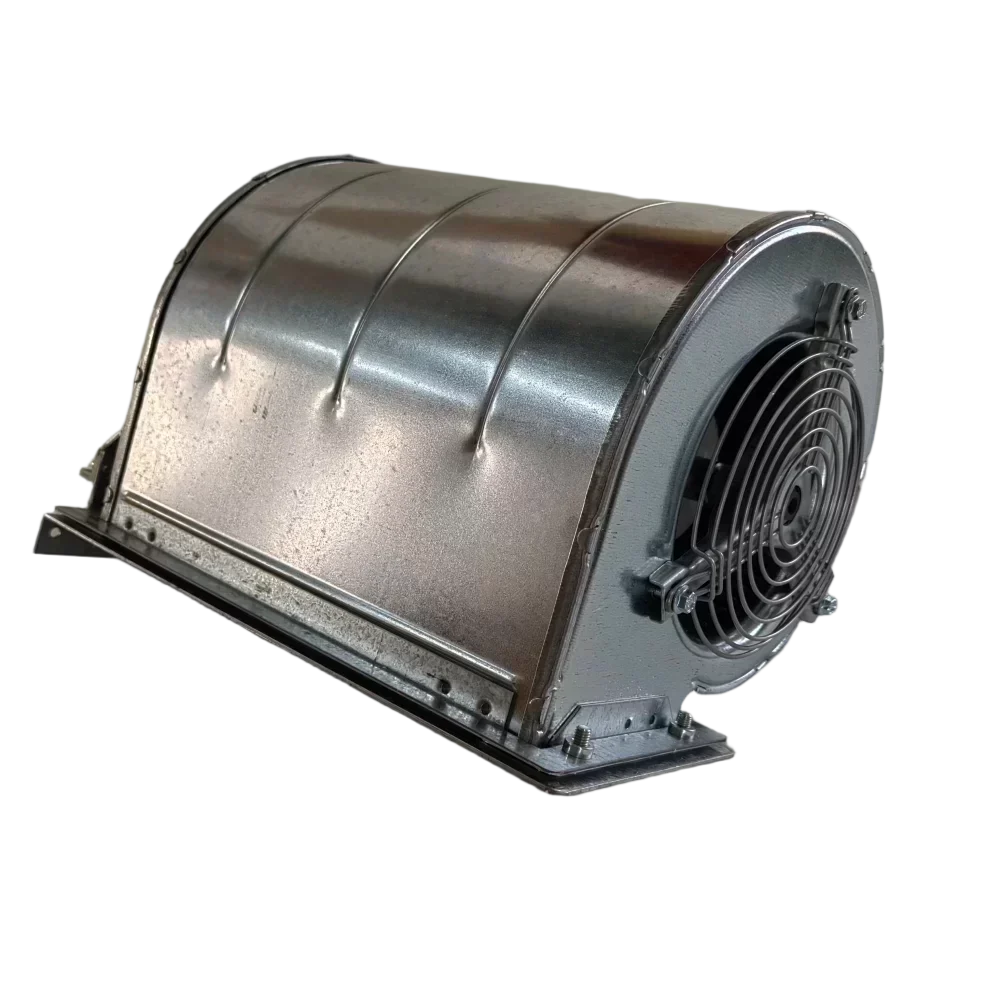

The ebmpapst D2D160-CE02-11 is a high-performance AC dual-inlet forward-curved centrifugal fan engineered for demanding industrial cooling and ventilation applications. Designed with Original Engineering standards, this unit ensures seamless Technical Compatibility with ABB drive systems and industrial control cabinets. The integrated M2D074-LA AC motor delivers robust thermal management, driving an air flow of 1750 m³/h at a nominal speed of 2700 rpm. Constructed with a galvanized sheet steel housing and galvanized steel blades, the fan offers exceptional durability in harsh operational environments. The ball bearing system guarantees continuous, low-maintenance operation, while the counter-clockwise rotation optimizes aerodynamic efficiency.
Technical Specifications:

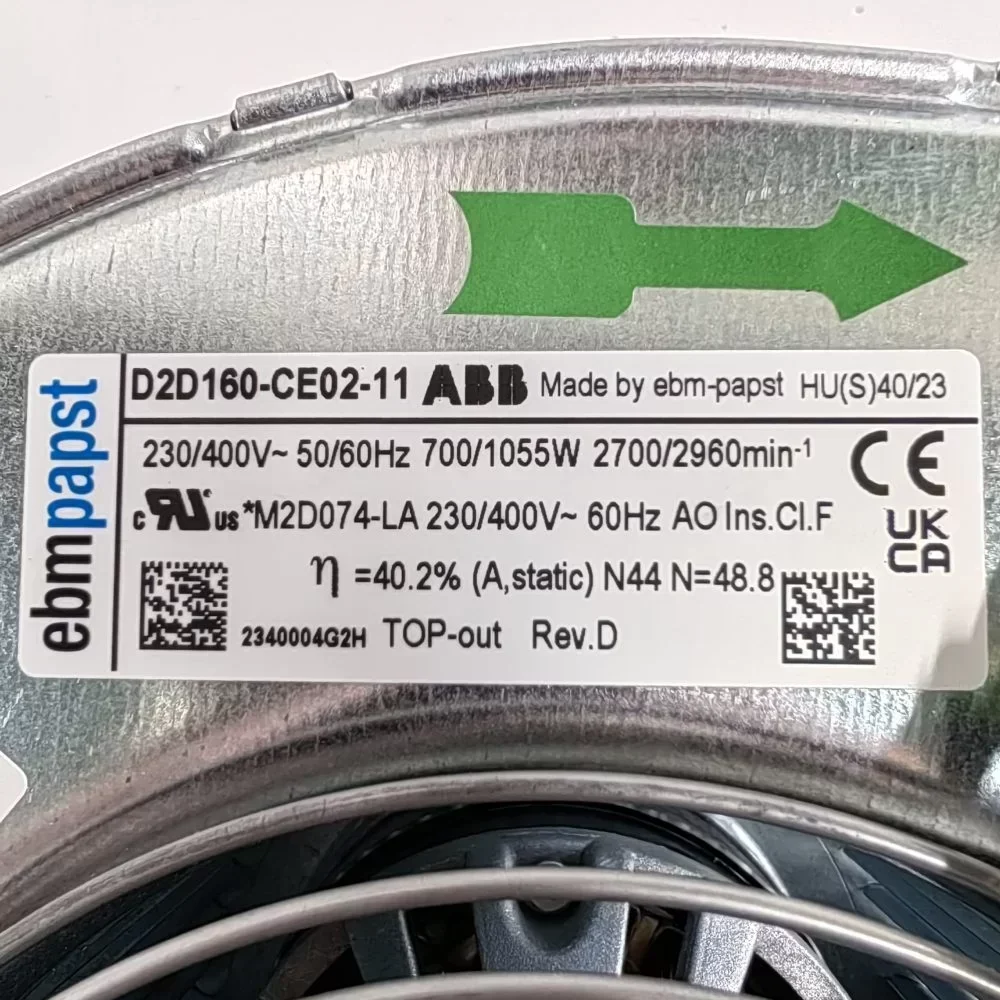

Brand: ebmpapst
Model Number: D2D160-CE02-11
Motor Type: AC Motor (M2D074-LA)
Voltage: 230 V
Power Consumption: 700 W
Speed: 2700 rpm
Air Flow: 1750 m³/h
Noise Level: 69 dB
Impeller Diameter: Ø 160 mm
Housing Material: Galvanized Sheet Steel
Blade Material: Galvanized Steel
Direction of Rotation: Counter-clockwise (seen on rotor)
Bearing Type: Ball Bearing
Standards: EN 60034-1, EN 60204-1, EN 60335-1, CE
Country of Origin: Hungary
Weight: 10.9 kg (Net), 11.0 kg (Gross)
Package Dimensions: 30 x 30 x 20 cm
Application Scenario:
This centrifugal fan is specifically deployed in high-density electrical cabinets, ABB variable frequency drives, and industrial HVAC systems where rapid heat dissipation is critical. The 1750 m³/h air volume prevents thermal throttling in power electronics, extending the lifecycle of sensitive components. With optimized Lead Time and secure single-item packaging, this unit provides immediate operational restoration for critical infrastructure.
Power source type: Corded Electric
Noise Level: 69db
Voltage: 230 V
Material: Stainless Steel
Speed: 2700rpm
Blade Material: Galvanized Steel
Warranty: 1 Year
After-sales Service Provided: Online support
Duct Diameter: 160mm
Model number: D2D160-CE02-11
Place of origin: Hungary
Brand name: Ebmpapst
Motor Type: AC Motor
Motor type: M2D074-LA
Diameter: 160mm
Motor size: 74
Housing material: Sheet steel, galvanised
Direction of rotation: Counter-clockwise, seen on rotor
Motor bearing: Ball bearing
Product conforming to standard: EN 60034-1; EN 60204-1; EN 60335-1; CE
EN 60034-1; EN 60204-1; EN 60335-1; CE: 10.9kg
Air flow: 1750 m³/h
Packaging and Delivery
Selling Units: Single item
Single package size: 30X30X20 cm
Single gross weight: 11.000 kg
