$407.00

SKU: 1600348047582 Brand: ,

Description

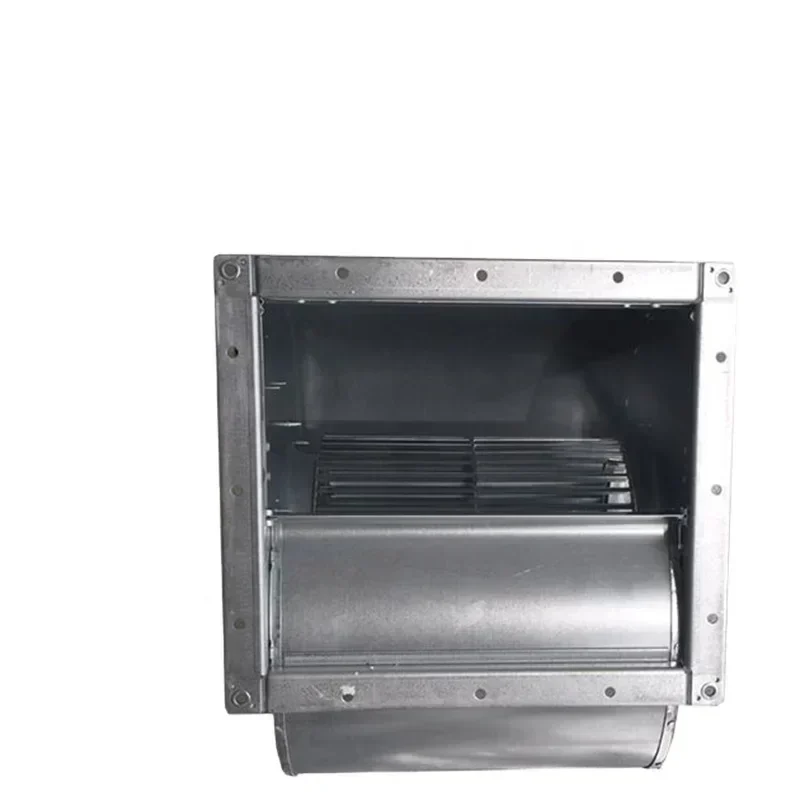

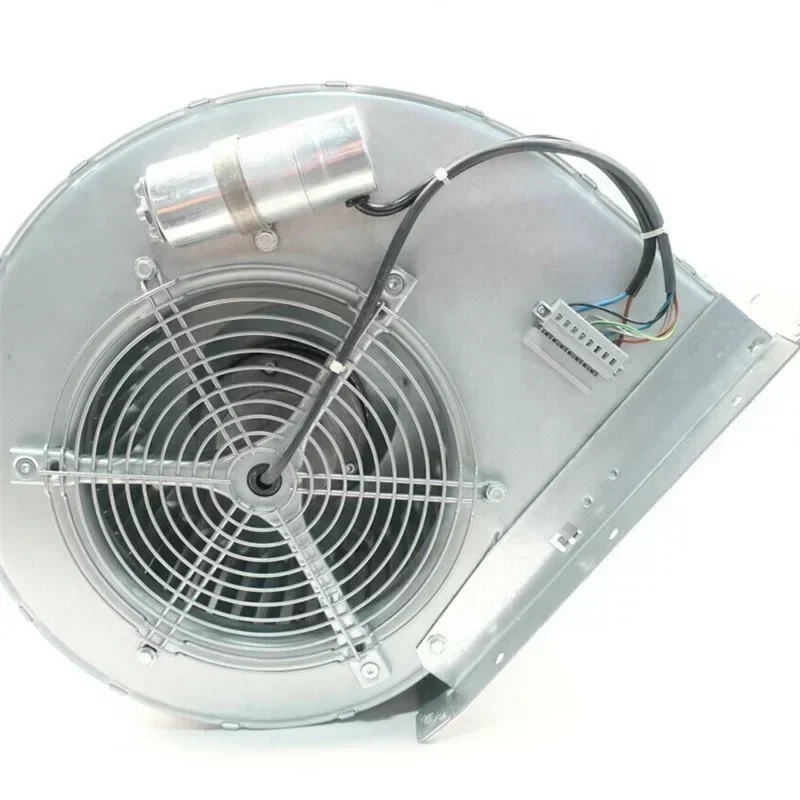

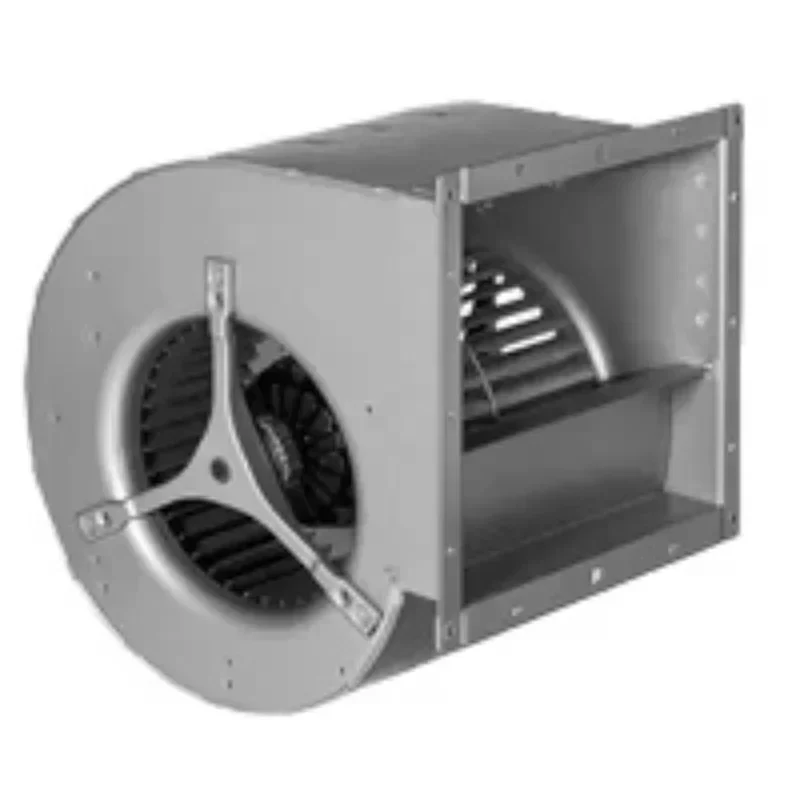

The ebmpapst D4E225-CC01-56 is a high-performance dual-inlet forward-curved centrifugal cooling fan engineered specifically for thermal management in industrial variable frequency drives, notably ABB inverter systems. Manufactured in Germany, this AC motor-driven blower ensures optimal airflow delivery to dissipate heat generated by high-power electronic components, thereby extending the operational lifecycle of critical automation equipment.

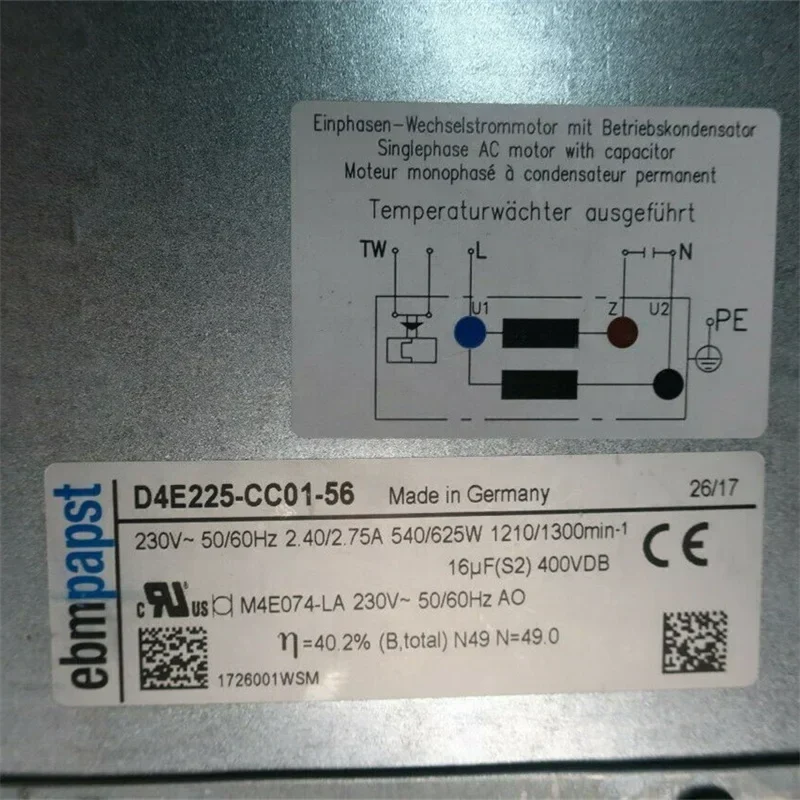

Technical Specifications
Brand: Ebmpapst
Model Number: D4E225-CC01-56
Motor Type: 4-Pole Single-Phase AC Motor
Nominal Voltage: 230V AC
Frequency: 50/60 Hz
Power Consumption: 540W at 50Hz / 625W at 60Hz
Current Draw: 2.4A at 50Hz / 2.75A at 60Hz
Nominal Speed: 1210 RPM at 50Hz / 1300 RPM at 60Hz
Impeller Diameter: 225 mm
Housing Material: Galvanized Sheet Metal
Impeller Material: High-Performance Plastic
Mounting Configuration: Free Standing
Power Source: Corded Electric
Country of Origin: Germany
Package Dimensions: 42 x 42 x 26 cm
Gross Weight: 70.000 kg
Warranty: 1 Year

Application and Compatibility
Designed for continuous operation in demanding industrial environments, the D4E225-CC01-56 acts as a primary ventilation unit for ABB inverters. The dual-inlet design maximizes volumetric flow within constrained cabinet spaces, preventing thermal throttling of IGBT modules and drive controllers. Its robust metal housing and precision-balanced plastic impeller minimize vibration and acoustic noise while maintaining high static pressure capabilities.

Procurement and Lifecycle Value
As an Original Engineering component, this centrifugal fan guarantees exact Technical Compatibility with designated ABB drive enclosures, eliminating integration risks associated with aftermarket alternatives. With a standard 1 Year warranty and reliable Lead Time, procurement of this OEM part ensures minimal downtime and restores factory-level cooling efficiency to your motor control centers.

Key Attributes
Mounting: Free Standing
Power source type: Corded Electric
Noise Level: /
Voltage: 230V
Material: Metal
Speed: 1300RPM
Blade Material: Plastic
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Duct Diameter: 225mm
Model number: D4E225-CC01-56
Place of origin: Germany
Brand name: Ebmpapst
Motor Type: AC Motor
Voltage: 230VAC
Frequency: 50/60HZ
Current: 2.4/2.75A
Power: 540/625W
Speed: 1210/1300RPM

Packaging and Delivery
Selling Units: Single item
Single package size: 42X42X26 cm
Single gross weight: 70.000 kg

ebmpapst D4E225-CC01-56 230V AC 2.4/2.75A 540/625W 1210/1300RPM ABB Ventilation Centrifugal Fan

ebmpapst D4E225-CC01-56 230V AC 2.4/2.75A 540/625W 1210/1300RPM ABB Ventilation Centrifugal Fan

ebmpapst D4E225-CC01-56 230V AC 2.4/2.75A 540/625W 1210/1300RPM ABB Ventilation Centrifugal Fan

ebmpapst D4E225-CC01-56 230V AC 2.4/2.75A 540/625W 1210/1300RPM ABB Ventilation Centrifugal Fan

ebmpapst D4E225-CC01-56 230V AC 2.4/2.75A 540/625W 1210/1300RPM ABB Ventilation Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
