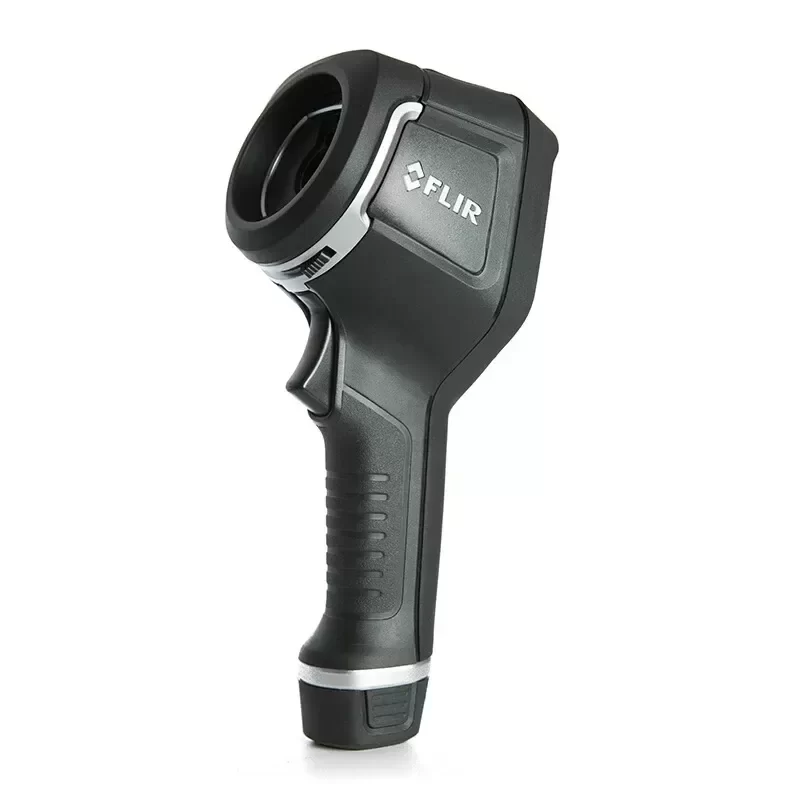

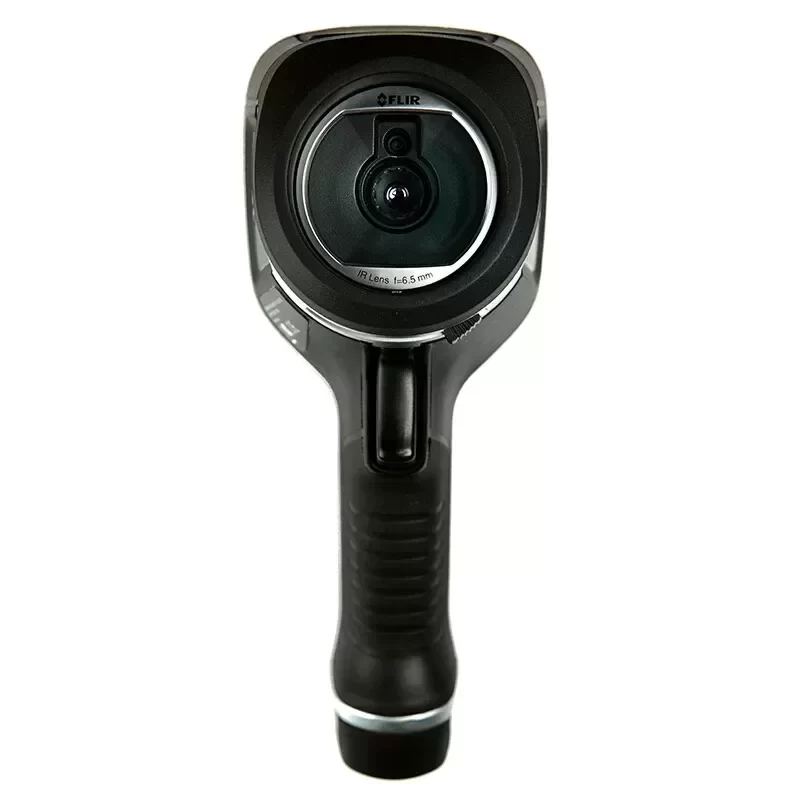

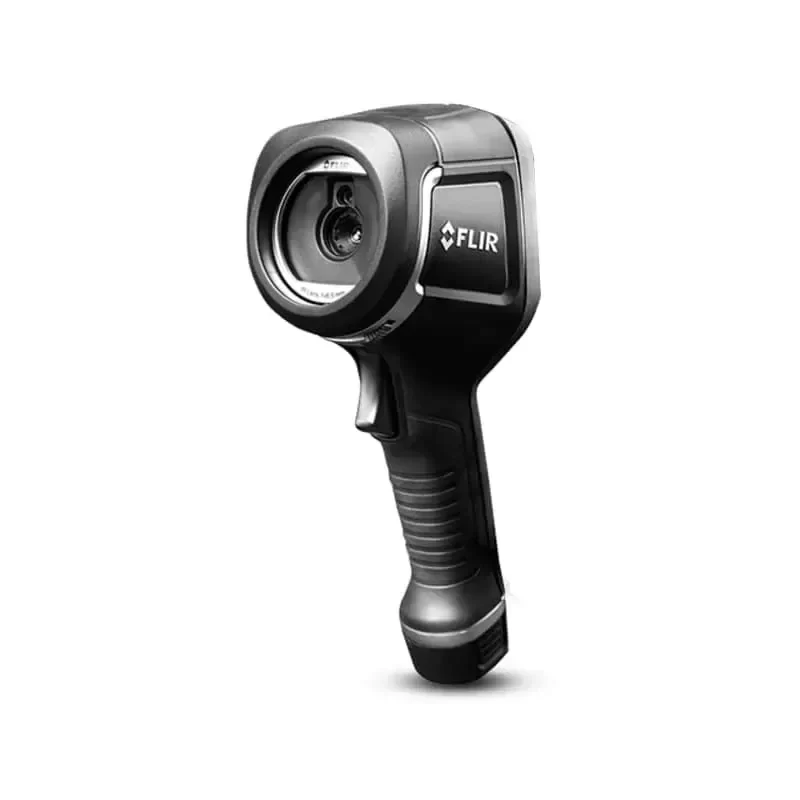

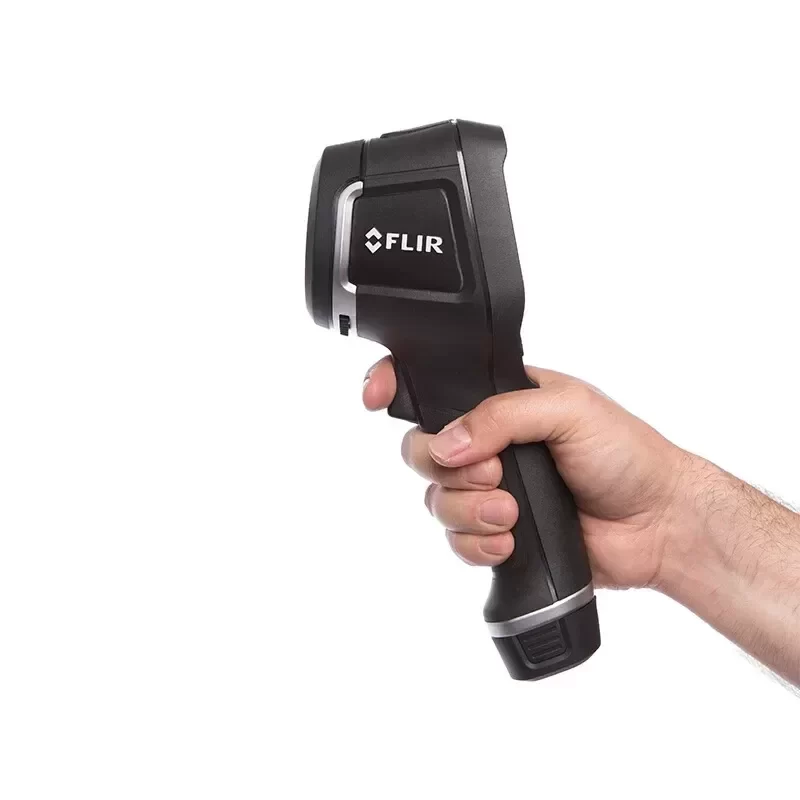

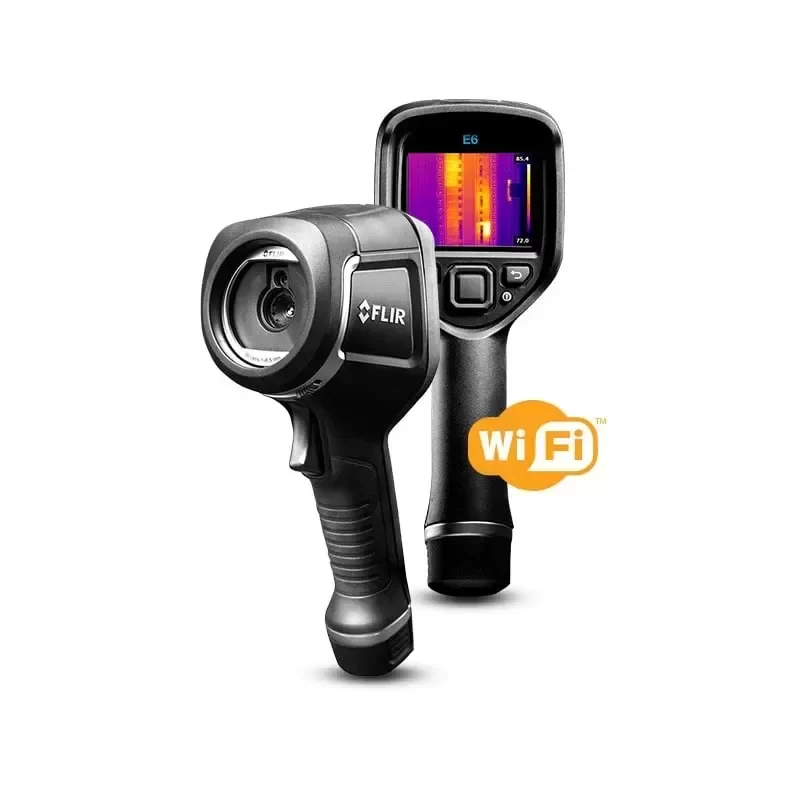

FLIR E6XT Thermal Imaging Camera with MSX and Wi-Fi

Description

The FLIR E6XT is an advanced thermal imaging camera engineered for rigorous industrial diagnostics, electrical inspections, and mechanical troubleshooting. Utilizing Original Engineering from Teledyne FLIR, this diagnostic tool integrates a 240 x 180 pixel uncooled microbolometer to deliver high-fidelity thermal data. The E6XT features proprietary MSX (Multi-Spectral Dynamic Imaging) technology, which embosses visual camera details onto the thermal image in real-time, providing unparalleled context for rapid fault detection. Designed for seamless Technical Compatibility with enterprise asset management systems, the integrated Wi-Fi module enables instant data transfer to the FLIR Tools mobile application for on-site reporting and analysis.

Technical Specifications
Brand: FLIR
Model Number: E6XT
Detector Type: Uncooled Microbolometer
IR Resolution: 240 x 180 pixels (43,200 pixels)
Thermal Sensitivity (NETD): <0.06°C (<60 mK)
Object Temperature Range: -20°C to 550°C
Accuracy: ±2% or ±2°C of reading
Field of View (FOV): 45° x 34°
Spatial Resolution (IFOV): 3.4 mrad
Image Frequency: 9 Hz
Spectral Range: 7.5 to 13 micrometers
Display: 3.0-inch 320 x 240 color LCD
Image Enhancement: MSX (Multi-Spectral Dynamic Imaging)
Color Palettes: Black and white, iron, rainbow
Focus Mechanism: Focus free
Connectivity: Wi-Fi to peer-to-peer or network
Storage Media: Internal memory (at least 500 sets of images)
File Format: Standard JPEG with 14-bit measurement data included
Battery Type: Rechargeable 3.6 V Li-ion battery
Battery Operating Time: Approx. 4 hours at 25°C
Enclosure Rating: IP54 (IEC 60529)
Drop Resistance: 2 meters
Operating Temperature Range: -15°C to 50°C
Camera Weight: 0.575 kg
Single Gross Weight: 3.000 kg
Package Dimensions: 45 x 31 x 15 cm

Industrial Application
The FLIR E6XT is purpose-built for predictive maintenance in high-voltage electrical panels, HVAC systems, and heavy rotating machinery. In a high-load manufacturing environment, maintenance engineers utilize the E6XT to identify localized overheating in three-phase motor bearings or unbalanced electrical loads before catastrophic failure occurs. The <0.06°C thermal sensitivity allows for the detection of minute temperature differentials, while the MSX technology ensures that component labels and wire routing are clearly visible in the thermal report. This reduces diagnostic time and minimizes facility downtime. Standard Lead Time for this diagnostic equipment is optimized through authorized distribution channels, ensuring rapid deployment for critical facility maintenance operations.

Key Attributes
Place of Origin: China
Model Number: E6XT
Brand Name: FLIR
Product name: FLIR Thermal Imaging Camera
Model: E6XT
IR Resolution: 240 x 180 (43,200 pixels)
Thermal Sensitivity/NETD: <0.11°F (0.06°C)/<60 mK
Image Frequency: 9 Hz
Spatial Resolution (IFOV): 3.4 mrad
Object temperature range: -4 to 1022°F (-20 to 550°C)
Accuracy: ±2%
Battery Type: Rechargeable 3.6 V Li-ion battery
File format: Standard JPEG, 14-bit measurement data included

Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 45X31X15 cm
Single gross weight: 3.000 kg
