Description

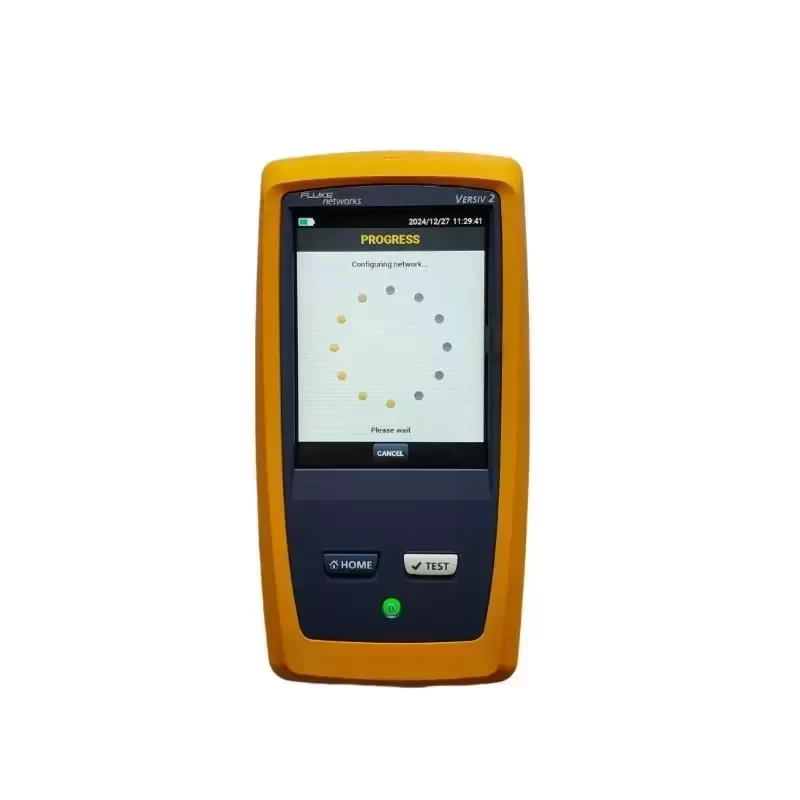

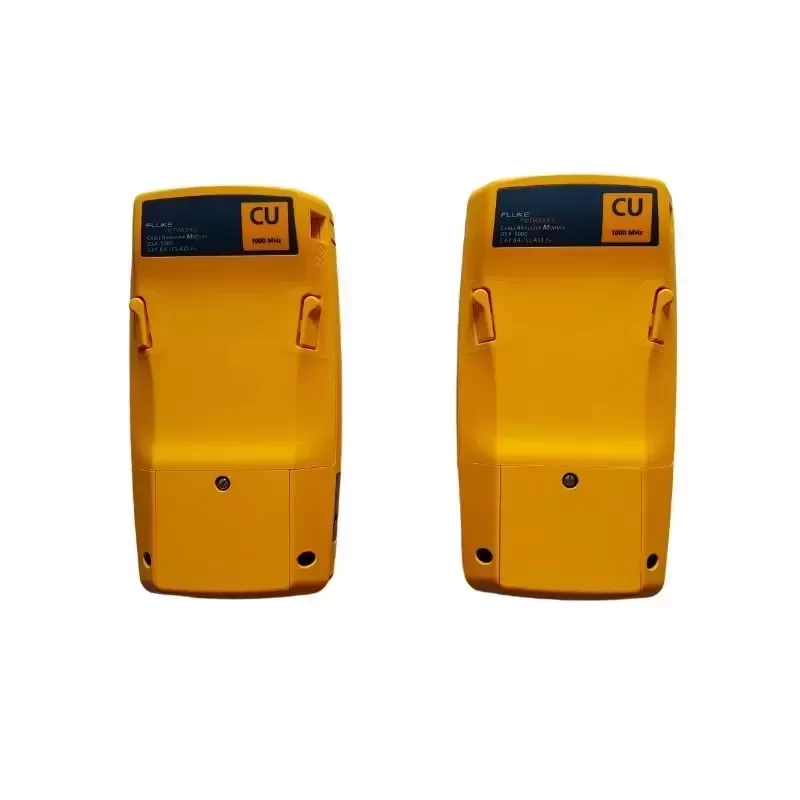

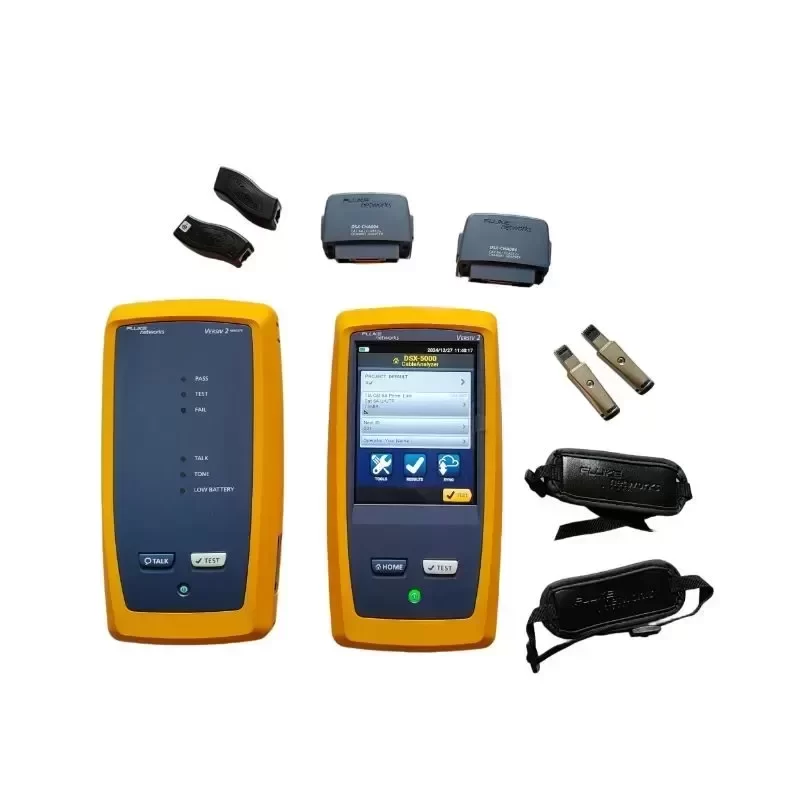

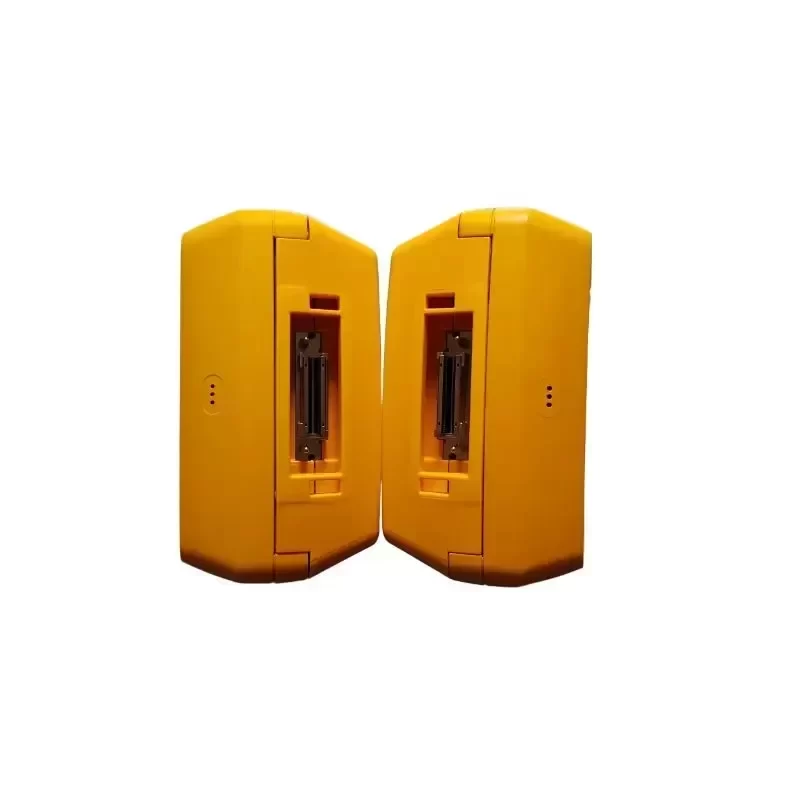

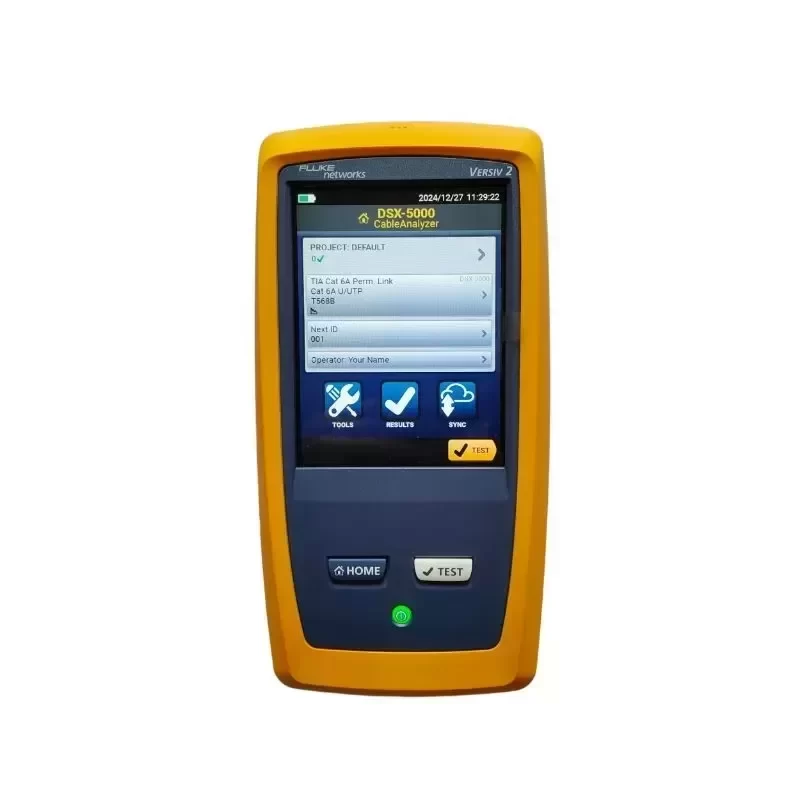

The Fluke Networks DSX2-5000 is an advanced 1 GHz DSX CableAnalyzer V2 designed for the rigorous certification of twisted pair copper cabling up to Cat 6A and Class FA. Built on the Versiv modular platform, this electronic measuring instrument accelerates every step of the copper certification process, ensuring Technical Compatibility across diverse network architectures. Original Engineering by Fluke Networks guarantees precise diagnostics, reducing Lead Time for network deployment and troubleshooting.
Technical Specifications:
Brand: Fluke Networks
Model: DSX2-5000
Platform: Versiv Modular System
Maximum Frequency: 1 GHz (1000 MHz)
Supported Cable Types: Shielded and Unshielded Twisted Pair (STP/UTP) LAN cabling (Cat 5e, 6, 6A, Class C, D, E, EA, F, FA)
Test Speed: 10 seconds for Cat 6A
Accuracy Level: Level V (ANSI/TIA-1152-A and IEC 61935-1)
Display: 5.7 inch LCD capacitive touchscreen
Diagnostic Technology: HDTDX (High Definition Time Domain Crosstalk) and HDTDR (High Definition Time Domain Reflectometry)
Battery Type: Lithium-ion 7.2 V
Battery Life: 8 hours typical operation
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 50°C
Operating Humidity: 0% to 90% (0°C to 35°C)
Weight: 1.28 kg (Main unit with module and battery)
Dimensions: 27.94 cm x 13.33 cm x 6.67 cm
Software Integration: LinkWare PC and LinkWare Live Cloud Service
EMC Certification: EN 61326-1
Application Scenario:
In high-density data center deployments and enterprise network upgrades, technicians face strict tolerances for crosstalk, return loss, and shield integrity. The DSX2-5000 resolves these critical challenges by utilizing its 1 GHz testing capacity and HDTDR/HDTDX diagnostics to pinpoint the exact distance to faults, such as transverse conversion loss (TCL) or shield continuity issues. This capability is essential for validating 10GBASE-T infrastructure, ensuring that the physical layer meets stringent IEEE standards before active equipment is deployed, thereby preventing costly network downtime and data packet loss.
Key Attributes
Amplitude resolution: 1.0 mV
Type: Cable Analyzer
Waveform: Square
Place of origin: United States
Frequency resolution: 1 Hz
Frequency (Hz): 2.4 GHz and 5 GHz
Brand name: Fluke
Customized support: OEM, ODM
Size: 28*15*10CM
Warranty: 1 years
Model number: DSX2-5000
Test Time CAT 6A / Class EA: 10 seconds
Internal Memory: Approximately 12,000 CAT 6A with plots
Adapter Channel: 1 GHz range
Plug type: Shielded RJ45
Display: 5.7" (14.47 cm) LCD display
Integrated Wi-Fi: Dual band (2.4 GHz and 5 GHz)
Packaging and Delivery
Selling Units: Single item
Single package size: 50X40X31 cm
Single gross weight: 5.000 kg
