Description
The Hioki PQ3198 is a high-precision Power Quality Analyzer Kit engineered for comprehensive monitoring, recording, and troubleshooting of power supply anomalies in complex industrial networks. Manufactured in Japan, this Original Engineering diagnostic instrument is designed to capture transient overvoltages, voltage dips, swells, and interruptions with exceptional fidelity. Equipped with four 100 A AC current sensors, the PQ3198 facilitates immediate deployment for multi-phase power analysis and power consumption auditing.
This analyzer is critical for assessing Technical Compatibility in renewable energy grid integrations, EV charging station diagnostics, and heavy manufacturing facilities where power quality directly impacts machine lifecycle value and operational uptime. By utilizing its advanced transient capture capabilities up to 6.0000 kV peak, engineers can isolate destructive electrical events before they cause catastrophic equipment failure.
Technical Specifications:
Brand Name: Hioki
Model Number: PQ3198
Product Type: Power Quality Analyzer Kit

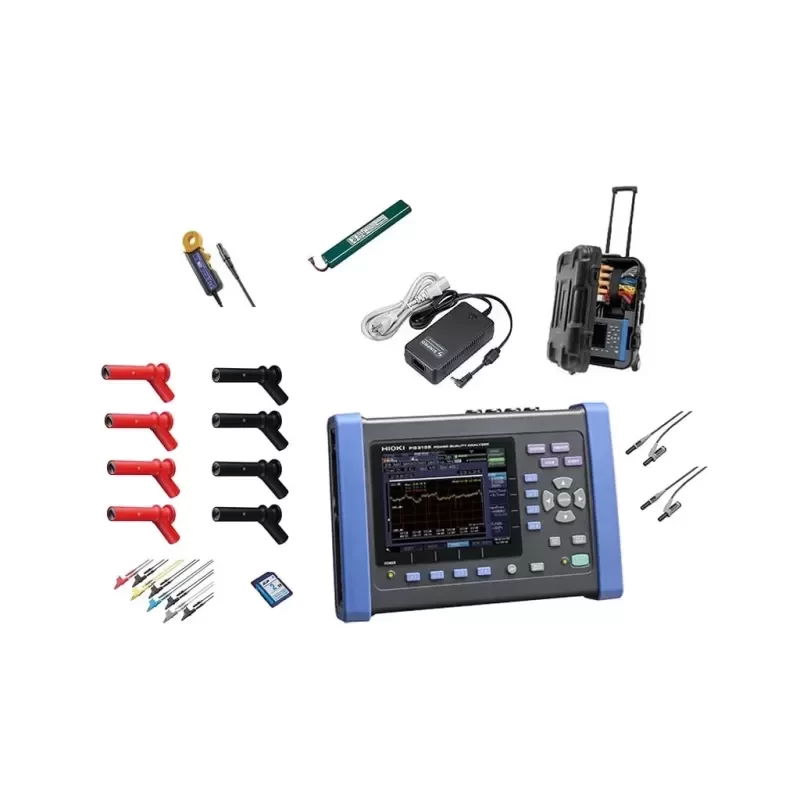

Included Components: Main unit, Four 100 A AC Current Sensors, Battery Pack
Place of Origin: Japan
Basic Accuracy: ±0.1%
Measurable Voltage Range: 600 Vrms nominal
Transient Voltage Range: 6.0000 kV peak
Measurement Line Types: Single-phase three-wire, Single-phase two-wire, Three-phase three-wire, Three-phase four-wire
Recording Capacity (Repeated ON): 1 year
Recording Capacity (Repeated OFF): 35 days
Dimensions: 300 x 211 x 68 mm
Weight: 2.6 kg with battery pack
Shipping Dimensions: 46 x 29 x 15 cm
Shipping Weight: 5.000 kg
Packaging Details: Cardboard box
Lead Time: Verified upon order confirmation based on global inventory
Key Attributes
Accuracy Class: ±0.1%
Measurable Voltage Range: 6.0000 kV
Type: Power Quality Analyzer
Place of Origin: Japan
Model Number: PQ3198
Brand Name: Hioki
Product Name: Hioki Power Quality Analyzer
Model: PQ3198
Ranges Voltage: 600 Vrms, 6.0000 kV peak (transient)
Measurement Line Type: Single-phase three-wire
Basic Accuracy: ±0.1%
Record Repeated on: One year
Dimensions: 11.81 x 8.31 x 2.68" (300 x 211 x 68 mm)
Weight: 5.7 lbs (2.6 kg) with battery pack
Record Repeated off: 35 days
Packaging and Delivery
Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 46X29X15 cm
Single gross weight: 5.000 kg
