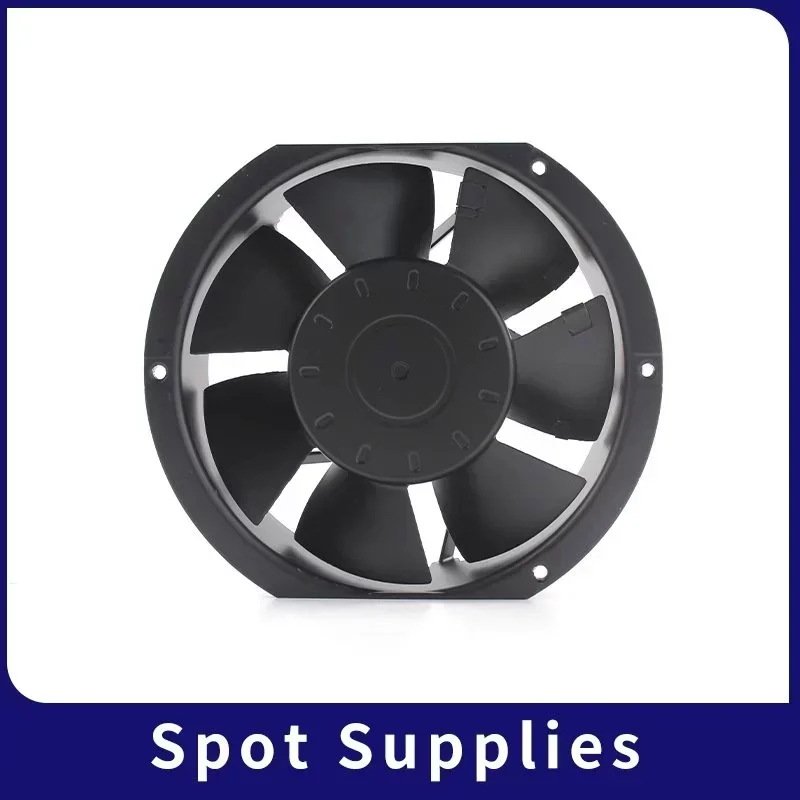

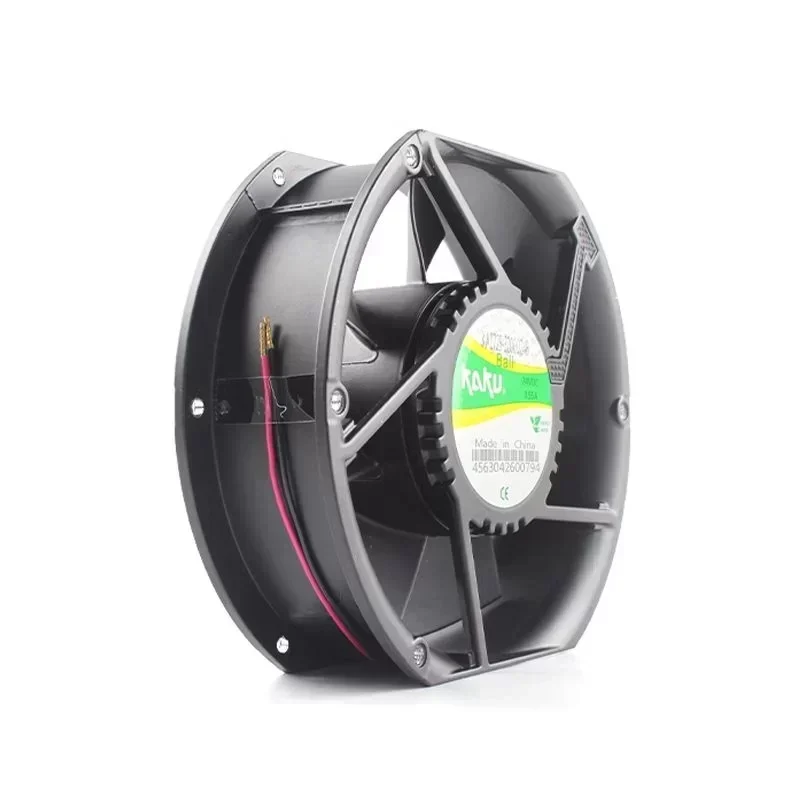

KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan
KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan
KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan

KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan

$21.00

SKU: 1600916584148 Brand:

Description

The KAKU KA1725-3200D24B is an industrial-grade DC axial flow cooling fan engineered for severe thermal environments. Featuring a robust all-metal construction, this 17251 form factor fan delivers exceptional heat dissipation in high-density control cabinets and power conversion systems. The integration of high-temperature resistant metal blades and a die-cast aluminum frame ensures mechanical stability under continuous thermal stress, preventing rotor deformation common in thermoplastic alternatives.

Technical Specifications:
Brand: KAKU
Model: KA1725-3200D24B
Fan Type: DC Axial Flow Fan
Dimensions: 172 x 150 x 51 mm
Operating Voltage: 24V DC
Power Consumption: 13W
Bearing System: Dual Ball Bearing
Impeller Material: High-Temperature Resistant Metal
Frame Material: Die-Cast Aluminum Alloy
Nominal Speed: 3200 RPM ± 10%
Estimated Airflow: 220 CFM (374 m³/h)
Acoustic Noise: 53 dB(A)
Operating Temperature Range: -20°C to +85°C
Weight: 0.95 kg
Connection Type: Lead Wire / Terminal

Industrial Application and Compatibility:
This cooling fan is specifically designed for metallurgy equipment, industrial furnaces, and heavy-duty variable frequency drive (VFD) enclosures where ambient temperatures exceed standard operational thresholds. The metal impeller design prevents aerodynamic degradation caused by heat warping, ensuring a constant volumetric flow rate to critical semiconductor components.

Procurement and Lifecycle:
Maintaining Original Engineering standards, the KA1725-3200D24B guarantees exact Technical Compatibility with existing 17251 mounting profiles. Its dual ball bearing architecture maximizes mean time between failures (MTBF), reducing maintenance intervals in continuous-duty applications. Contact our technical supply network to verify current Lead Time and secure inventory for critical infrastructure upgrades.

Key Attributes
Voltage: 24v
Electric current type: DC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Magnesium alloy
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: KAKU
Model number: KA1725-3200D24B
Current: 0.55A
Power: 13W
Air volume: 232CFM
Speed: 3200RPM
Weight: 666g
Bearing Type: Ball Bearing

Packaging and Delivery
Selling Units: Single item
Single package size: 172X150X51 cm
Single gross weight: 1.000 kg

KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan

KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan

KA1725-3200D24B KAKU 17251 24V 13W Metal Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
