KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan
KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan
KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan
KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan
KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

$26.45

SKU: 1601338949818 Brand:

Description

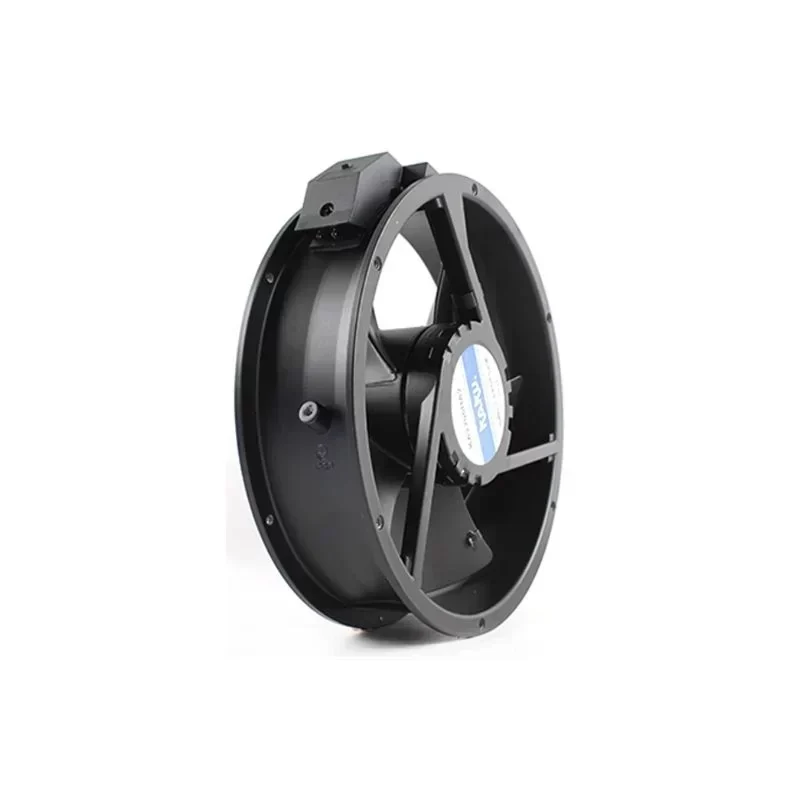

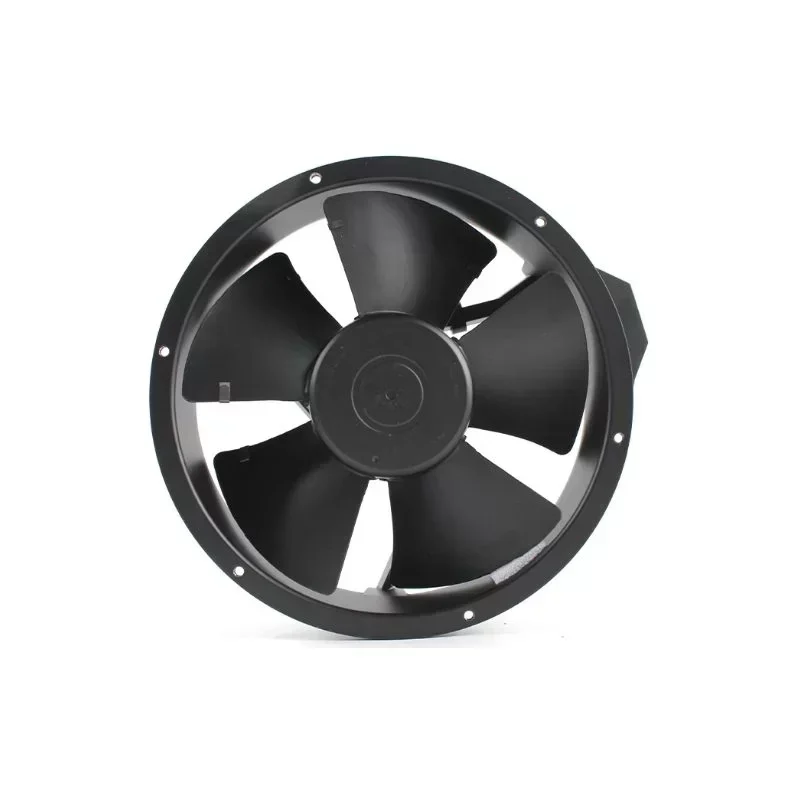

The KAKU KA2206HA2 is an industrial-grade, high-temperature axial cooling fan engineered for rigorous thermal management in electrical distribution cabinets and control panels. Utilizing Original Engineering principles, this all-metal AC fan delivers exceptional Technical Compatibility with standard enclosure architectures, ensuring optimal airflow and extended component lifecycle.

Technical Specifications:
Brand: KAKU
Model: KA2206HA2
Fan Type: High-Temperature Axial Cooling Fan

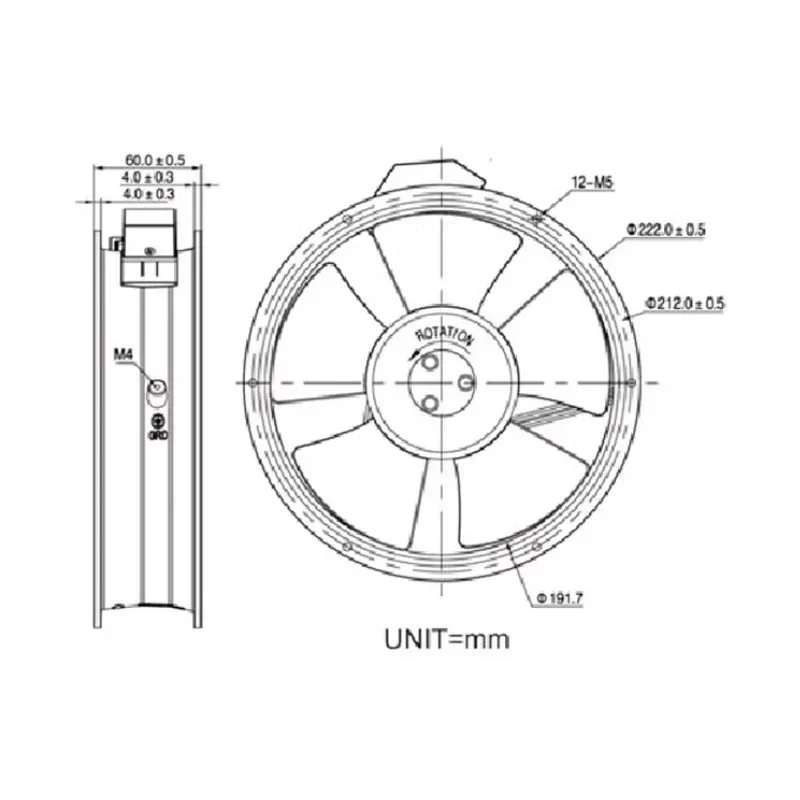

Dimensions: 222 x 222 x 60 mm
Operating Voltage: 220V to 240V AC
Operating Current: 0.18A / 0.25A
Power Consumption: 40W / 53W
Rotational Speed: 2800 RPM / 3300 RPM

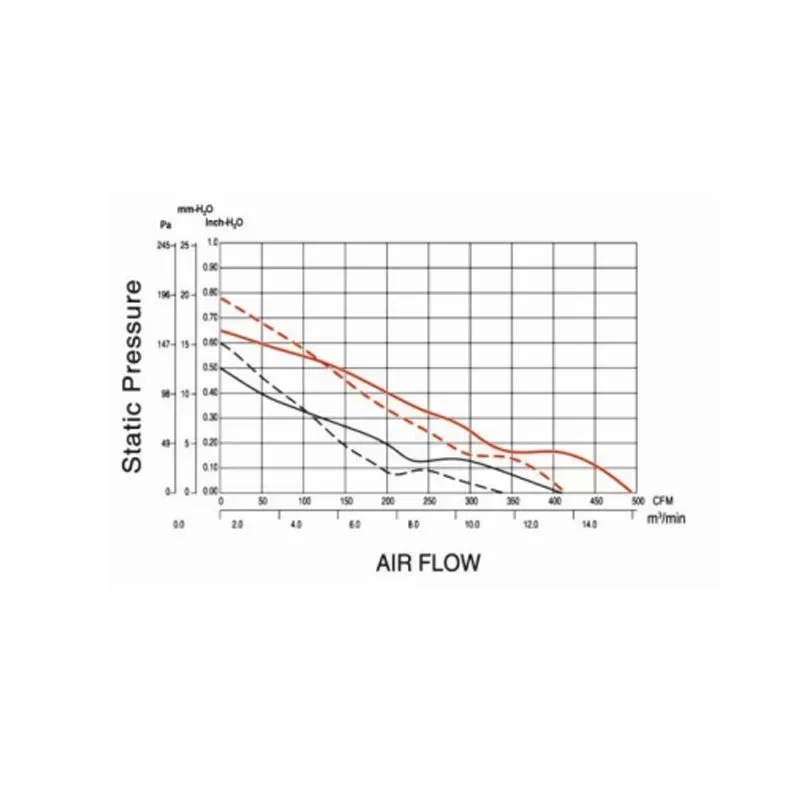

Airflow Capacity: 725.9 m³/h / 833 m³/h
Acoustic Noise Level: 63 dB(A) / 68 dB(A)
Bearing System: Precision Ball Bearing
Housing Material: Stainless Steel
Blade Material: Stainless Steel
Ingress Protection: IP55
Weight: 1.22 KG
Power Source: Electric AC

Application Scenario:
Designed specifically for high-density distribution cabinets and automated control panels, the KA2206HA2 mitigates thermal accumulation generated by variable frequency drives, PLCs, and power transformers. The IP55-rated stainless steel construction ensures resilience in harsh industrial environments, preventing dust and moisture ingress while maintaining a continuous airflow of up to 833 m³/h. This robust thermal management solution minimizes system downtime and protects critical infrastructure. With an optimized Lead Time, this unit provides immediate value for facility maintenance and OEM production lines.

Key Attributes
Voltage: AC 220V~240V
Material: Stainless Steel
Mounting type: Free Standing
Type: High-Temperature Axial Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Stainless Steel
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: KAKU
Product Model: KA2206HA2
Size: 222*60mm
Voltage: 220/240V
Current: 0.18/0.25A
Air flow: 725.9/833m³/h
Noise: 63/68dB(A)
Speed: 2800/3300RPM
Power: 40/53W
Weight: 1.22KG
Bearing: Ball Bearing

Packaging and Delivery
Selling Units: Single item
Single package size: 22.2X22.2X6 cm
Single gross weight: 1.220 kg

KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

KAKU KA2206HA2 222x60mm 220/240V AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
