Description

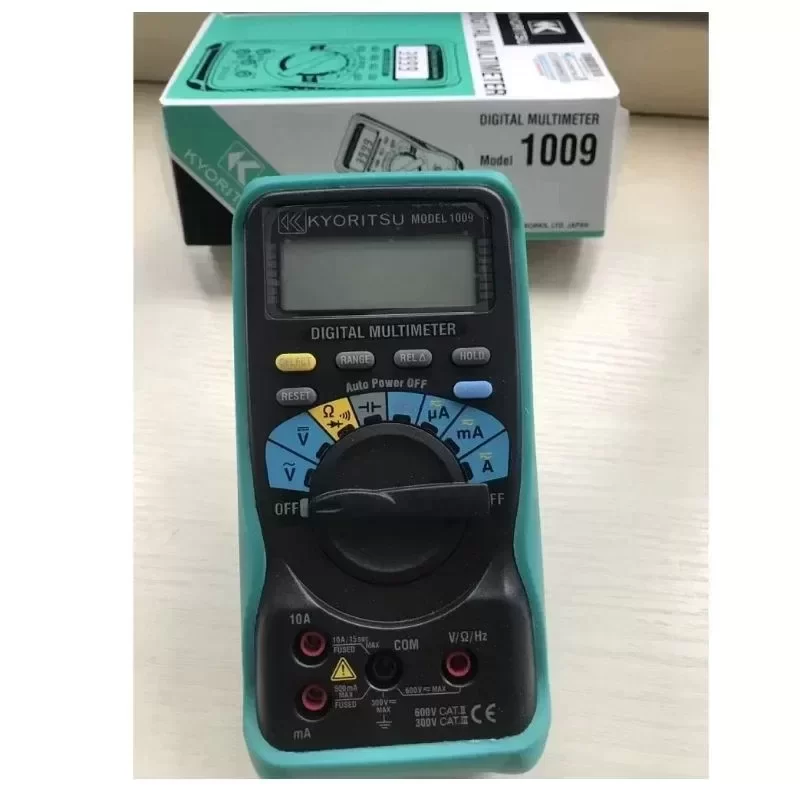

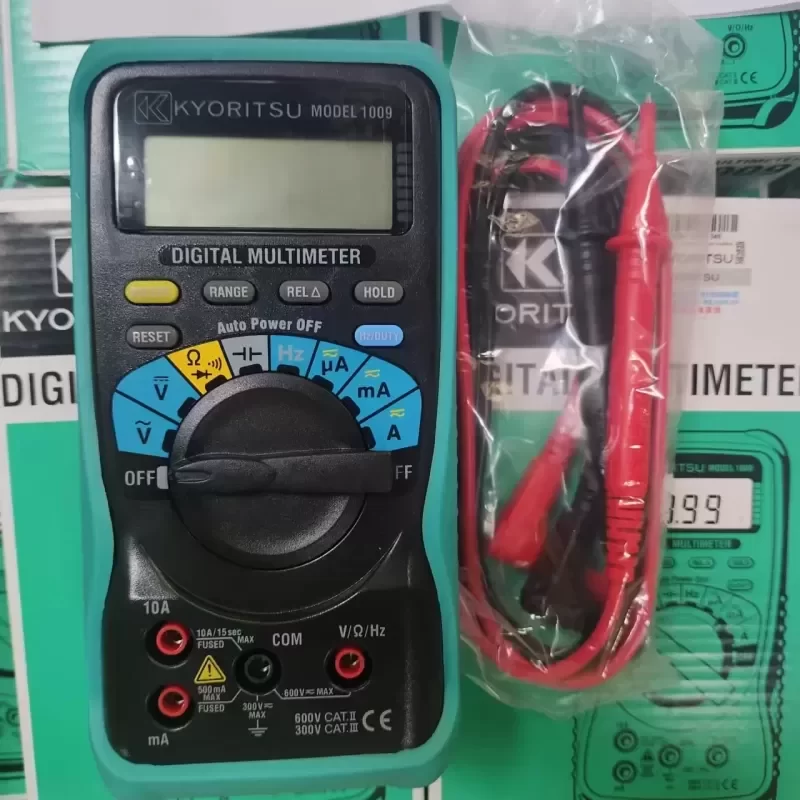

The Kyoritsu KEW1009 is an advanced auto-range digital multimeter engineered for precision electrical diagnostics and industrial troubleshooting. Manufactured in Japan, this instrument delivers high-fidelity measurements across a wide spectrum of electrical parameters, ensuring Technical Compatibility with both low-voltage electronics and standard industrial power systems.
Industrial Application
Designed for field service engineers and facility maintenance technicians, the KEW1009 excels in environments requiring rapid fault isolation. Its auto-ranging capability streamlines the testing of control panels, motor drives, and HVAC circuits, reducing downtime during critical diagnostic procedures. The Original Engineering guarantees stable readings even in electrically noisy environments, providing reliable data for preventative maintenance and safety compliance.
Technical Specifications
Brand: Kyoritsu
Model Number: KEW1009
Place of Origin: Japan
AC/DC Voltage Range: 400mV / 4V / 40V / 400V / 600V
AC/DC Current Range: 40mA / 400mA / 4A / 10A
Resistance Range: Up to 40MΩ
Frequency Range: 5.12Hz / 51.2Hz / 512Hz / 5.12kHz / 51.2kHz / 512kHz / 5.12MHz / 10MHz
Capacitance Range: 40nF to 100uF
Base Accuracy: ±1.6%
Operating Temperature: -25 to 45 °C
Power Source: 2 x R6P 1.5V Battery
Dimensions: 155 x 75 x 33 mm
Weight: 260 g
Package Weight: 1.000 kg
Package Dimensions: 20 x 15 x 11 cm
Procurement and Lifecycle
With optimized Lead Time and robust construction, the Kyoritsu 1009 stands as a reliable standard component for industrial electrical maintenance, offering sustained lifecycle value and precise data capture for rigorous compliance testing.
Key Attributes
Measuring Current Range: /40mA/400mA/4A/10A
Measuring Voltage Range: 400mV/4V/40V/400V/600V
Place of Origin: Japan
Model Number: 1009
Brand Name: Kyoritsu
Dimensions: 155 x 75 x 33 mm
Measuring Capacitance Range: .
Measuring Inductance Range: .
Measuring Resistance Range: 10MΩ
Operating Temperature: -25~45
Product Name: Kyoritsu Digital Multimeter
Model: KEW1009
AC/DC V Ranges: 400mV/4V/40V/400V/600V
AC/DC A Ranges: 40mA/400mA/4A/10A
Accuracy: ±1.6%
Frequency Range: 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
Power Source: 2 x R6P 1.5V Battery
Dimensions: 155 x 75 x 33 mm
Weight: Approx. 260 g (Including Batteries)
Packaging and Delivery
Selling Units: Single item
Single package size: 20X15X11 cm
Single gross weight: 1.000 kg
