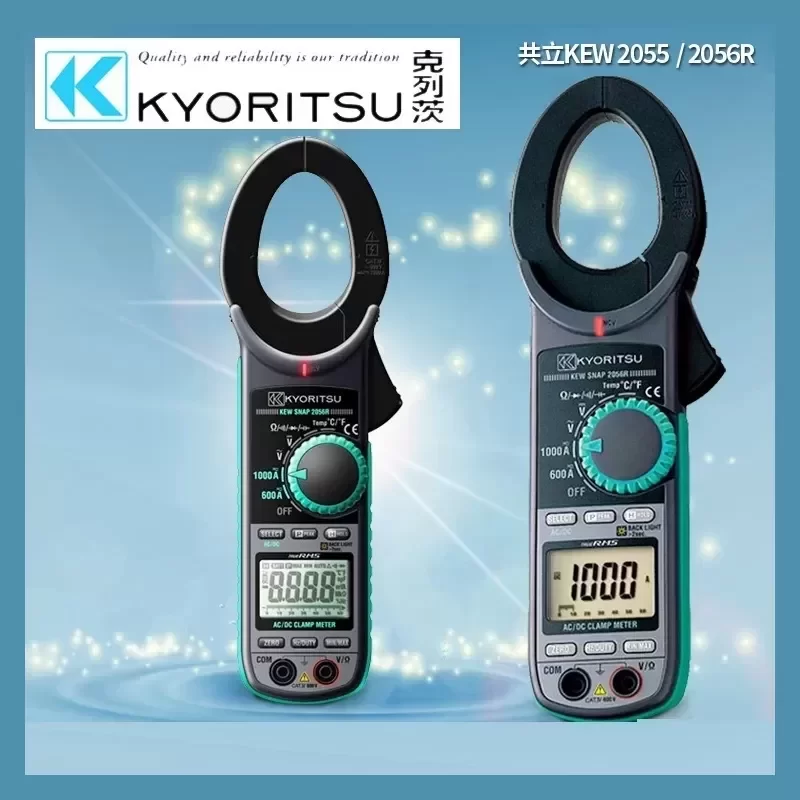

Kyoritsu 2056R Digital Clamp Meter True RMS 1000A/600V AC/DC Advanced Clamp Meters

Description

The Kyoritsu 2056R is a professional-grade True RMS digital clamp meter engineered for precision diagnostics in demanding electrical and industrial environments. Manufactured in Japan, this instrument delivers high-fidelity AC/DC current measurement up to 1000A and voltage measurement up to 600V. The integration of True RMS technology ensures accurate readings on distorted waveforms commonly found in variable frequency drives, switching power supplies, and non-linear loads.

Designed with Original Engineering from Kyoritsu, the 2056R features a robust jaw design with a maximum conductor size of Ø 40mm. The device incorporates a Non-Contact Voltage (NCV) function, providing an immediate safety check for active circuits. Its Technical Compatibility extends across heavy industrial maintenance, HVAC system diagnostics, and commercial electrical troubleshooting. With a ruggedized housing operating efficiently between -10 to 50℃, it meets stringent IEC61010-1 CAT IV 600V safety standards, ensuring maximum operator protection during high-energy measurements.

Technical Specifications:
Brand: Kyoritsu
Model Number: 2056R
Place of Origin: Japan
Measurement Type: True RMS
AC/DC Current Range: 0 to 600.0A / 1000A
AC/DC Voltage Range: 6V / 60V / 600V Auto Ranging
Resistance Range: 600 Ohms to 60 MOhms
Capacitance Range: 400nF to 40uF
Frequency Range: 10Hz to 10kHz
Maximum Conductor Size: Ø 40mm
Operating Temperature: -10 to 50℃
Applicable Standards: IEC61010-1 CAT IV 600V, IEC61010-2-032, IEC61326
Power Source: 2 x AAA 1.5V Batteries
Dimensions: 254 x 82 x 36mm
Net Weight: 310g
Gross Weight: 1.200 kg
Package Dimensions: 29 x 16 x 11 cm

Procurement and Lead Time:

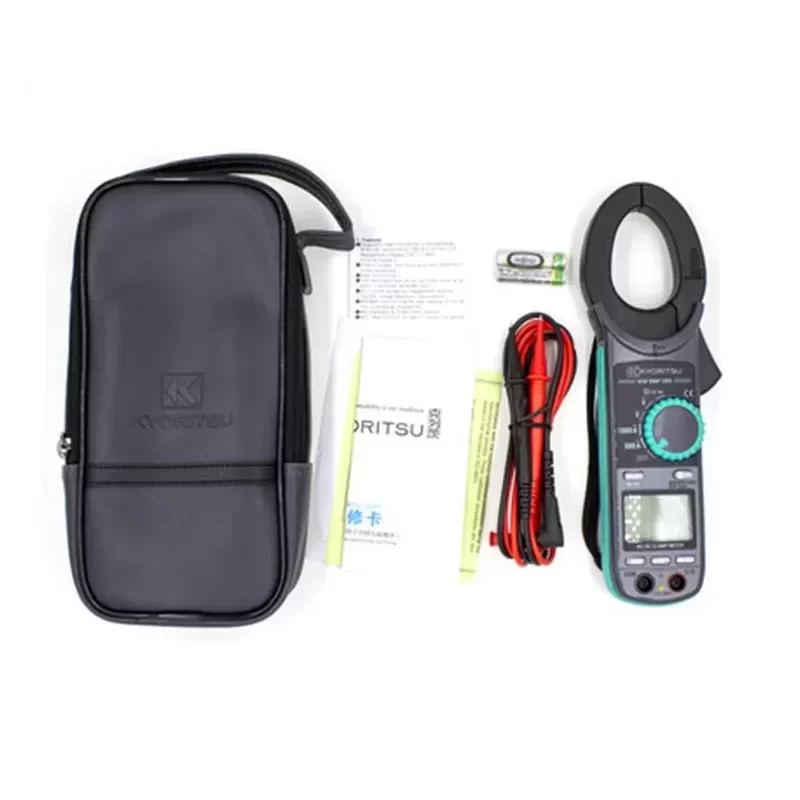

This unit is supplied as a single complete package. Lead Time for bulk or specialized orders depends on regional logistics, but standard inventory ensures rapid deployment for critical maintenance operations. The Kyoritsu 2056R guarantees precise Technical Compatibility with standard industrial calibration protocols.

Key Attributes
Measuring Voltage Range: 600V
Place of Origin: Japan
Model Number: 2056R
Brand Name: Kyoritsu
Dimensions: 254 x 82 x 36mm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 1000A
Measuring Inductance Range: ,
Measuring Resistance Range: ,
Operating Temperature: -10 to 50℃
Weight: 310g
Product name: Kyoritsu Clamp Meter
Model: 2056R
AC/DC A: 0 to 600.0A/1000A
AC/DC V: 6/60/600V Auto Ranging
Applicable Standard: IEC61010-2-032, IEC61326
Power Source: 2 x "AAA" 1.5V Batteries
Dimensions: 254 x 82 x 36mm
Weight: 310g

Packaging and Delivery
Selling Units: Single item
Single package size: 29X16X11 cm
Single gross weight: 1.200 kg
