Description

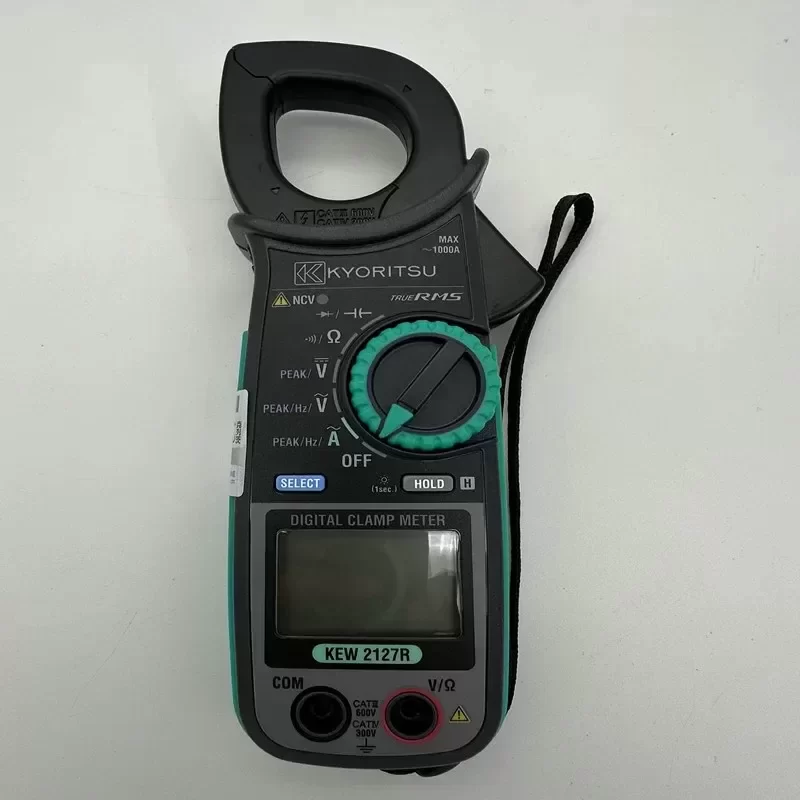

The Kyoritsu 2127R is a professional-grade True RMS AC Digital Clamp Meter engineered for high-accuracy electrical diagnostics in complex industrial environments. Manufactured in Japan, this instrument is designed to measure distorted waveforms accurately, making it indispensable for modern power distribution systems, variable frequency drives, and non-linear loads. The integration of True RMS technology ensures precise current and voltage readings where standard average-responding meters fail.
Technical Specifications:
Measuring Current Range (AC): 60.00 / 600.0 / 1000A Auto-ranging
Measuring Voltage Range (AC/DC): 60.00 / 600.0V Auto-ranging
Measuring Resistance Range: 600.0Ω / 6.000 / 60.00 / 600.0kΩ / 6.000 / 40.00MΩ
Measuring Capacitance Range: 1.000 / 10.00 / 100.0μF
Display Type: Digital Auto Range with True RMS
Safety Standard: IEC 61010-1 CAT IV 300V, CAT III 600V
Physical and Environmental Parameters:
Dimensions: 204(L) x 81(W) x 36(D)mm
Net Weight: 230g
Gross Weight: 1.200 kg
Operating Temperature: -10 to 50℃
Place of Origin: Japan
Application Scenario:
The Kyoritsu 2127R provides critical diagnostic capabilities for HVAC technicians, plant maintenance engineers, and electrical contractors. Its 1000A AC capacity and True RMS measurement solve the critical problem of diagnosing harmonic distortion in industrial motor controls and commercial power panels. Technical Compatibility is guaranteed across standard low-to-medium voltage electrical networks.
Procurement and Logistics:
Backed by Original Engineering from Kyoritsu Japan, this brand new unit ensures long-term reliability and calibration stability. We maintain optimized inventory to ensure minimal Lead Time for critical maintenance operations. Single package dimensions are 29 x 15 x 10 cm, securely packed for global transit.
Key Attributes
Measuring Voltage Range: 60.00/600.0V
Place of Origin: Japan
Model Number: 2127R
Brand Name: Kyoritsu
Dimensions: 204(L) x 81(W) x 36(D)mm
Display Type: Digital Only
Measuring Capacitance Range: 1.000/10.00/100.0μF
Measuring Current Range: 60.00/600.0/1000A
Measuring Inductance Range: ,
Measuring Resistance Range: 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ
Operating Temperature: -10 to 50℃
Weight: 230g
Product name: Kyoritsu Clamp Meter
Model: 2127R
AC A (Auto-ranging): 60.00/600.0/1000A
AC/DC V (Auto-ranging): 60.00/600.0V
Range (Ω) (Auto-ranging): (6/60/600kΩ
Capacitance test: 1.000/10.00/100.0μF
Dimensions: 204(L) x 81(W) x 36(D)mm
Weight: 230g
Packaging and Delivery
Selling Units: Single item
Single package size: 29X15X10 cm
Single gross weight: 1.200 kg
