Kyoritsu 2431 Leakage Clamp Meter

Description

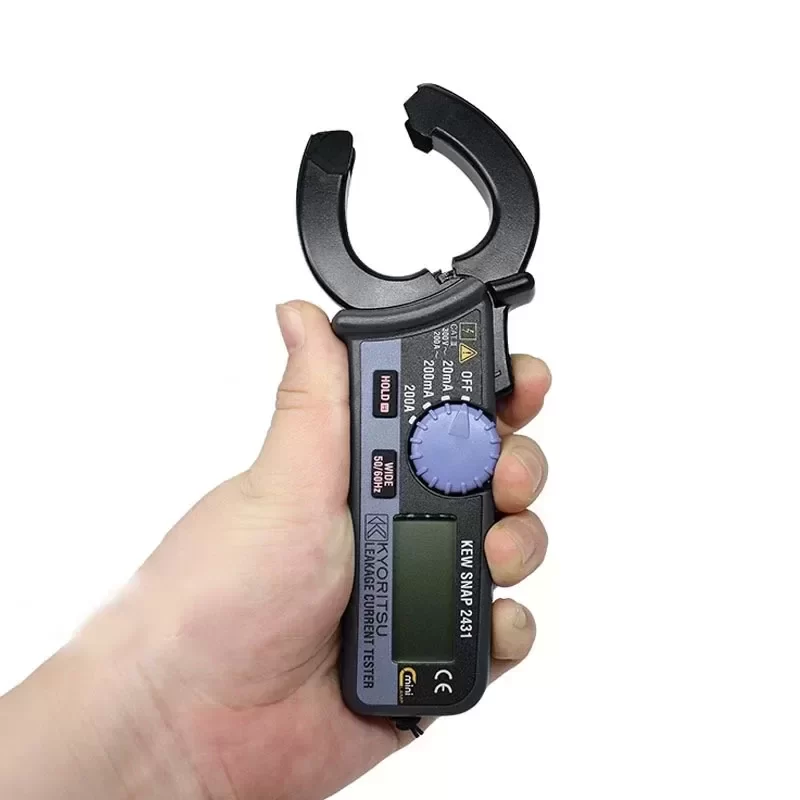

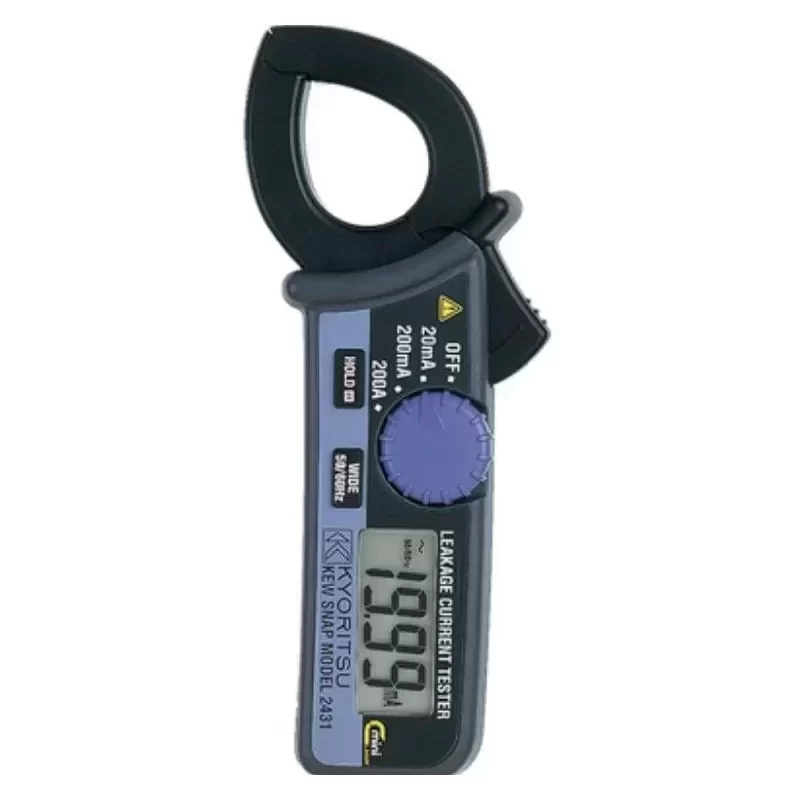

The Kyoritsu 2431 is an ultra-compact, high-precision digital leakage clamp meter engineered for accurate AC current measurement in industrial and commercial electrical systems. Manufactured in Japan, this instrument represents Original Engineering at its finest, providing reliable diagnostics for ground fault detection and routine electrical maintenance without interrupting the circuit.

Technical Specifications:
Brand: Kyoritsu
Model: 2431
Product Type: Leakage Clamp Meter
Place of Origin: Japan
AC Current Range (50/60Hz): 20mA / 200mA / 200A
Maximum Conductor Size: Ø 24mm
Frequency Response: 40Hz to 400Hz
Withstand Voltage: 3700V AC for 1 minute
Safety Standards: IEC 61010-1 CAT.III 300V
Display Type: Digital
Operating Temperature: -10°C to 50°C
Power Source: 2 x 1.5V LR-44 Batteries
Dimensions: 149 x 60 x 26 mm
Net Weight: 120g
Gross Package Weight: 1.300 kg
Package Dimensions: 32 x 21 x 11 cm

Application and Technical Compatibility:
Designed for high-density electrical panels and confined spaces, the 24mm teardrop-shaped jaw ensures Technical Compatibility with standard industrial wiring. It is essential for identifying insulation faults, measuring low-level leakage currents in the 20mA range, and verifying standard load currents up to 200A. This dual-functionality makes it a critical diagnostic tool for facility managers and electrical engineers tasked with minimizing operational downtime and ensuring compliance with safety protocols.

Procurement and Logistics:
Available Brand New in Stock with an optimized Lead Time for global B2B procurement. The unit is packaged securely to maintain calibration integrity and physical protection during international transit.

Key Attributes
Measuring Voltage Range: 3700V
Place of Origin: Japan
Model Number: 2431
Brand Name: Kyoritsu
Dimensions: 149 x 60 x 26 mm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 20/200mA/200A
Measuring Inductance Range: ,
Measuring Resistance Range: ,
Operating Temperature: -10℃~50℃
Weight: 120g
Product name: Kyoritsu Clamp Meter
Model: 2431
AC A (50/60Hz): 20/200mA/200A
General Specifications Conductor Size: 24mm max.
Safety Standards: IEC 61010-1 CAT.III 300V
Frequency Response: 40 to 400Hz
Withstand Voltage: 3700V AC for 1 minute
Power Source: 2 x 1.5V LR-44 Batteries
Dimensions: 149 x 60 x 26 mm
Weight: 120 g

Packaging and Delivery

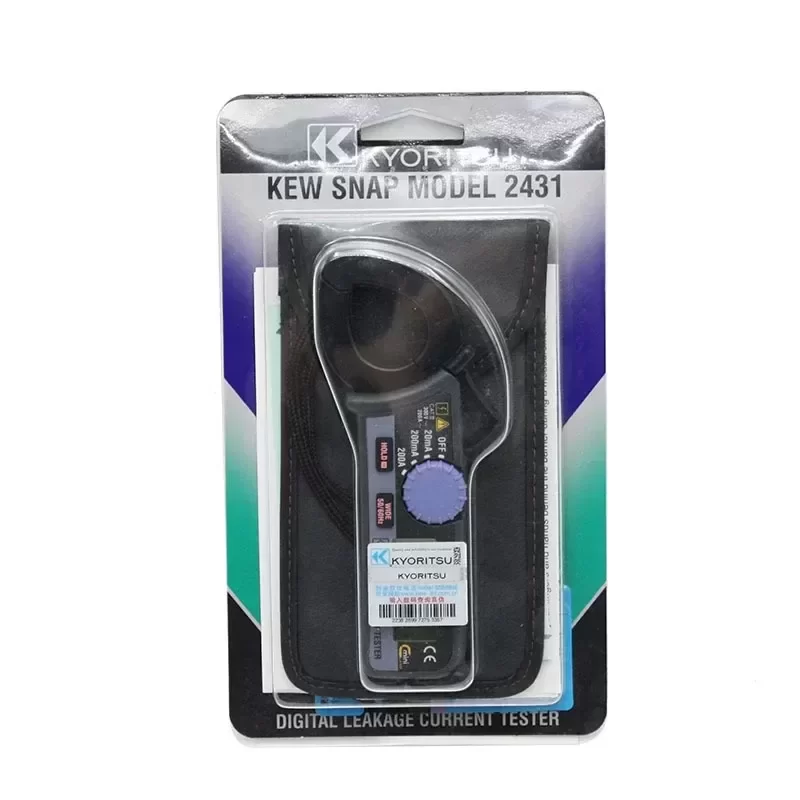

Packaging Details: Cardboard box
Selling Units: Single item
Single package size: 32X21X11 cm
Single gross weight: 1.300 kg
