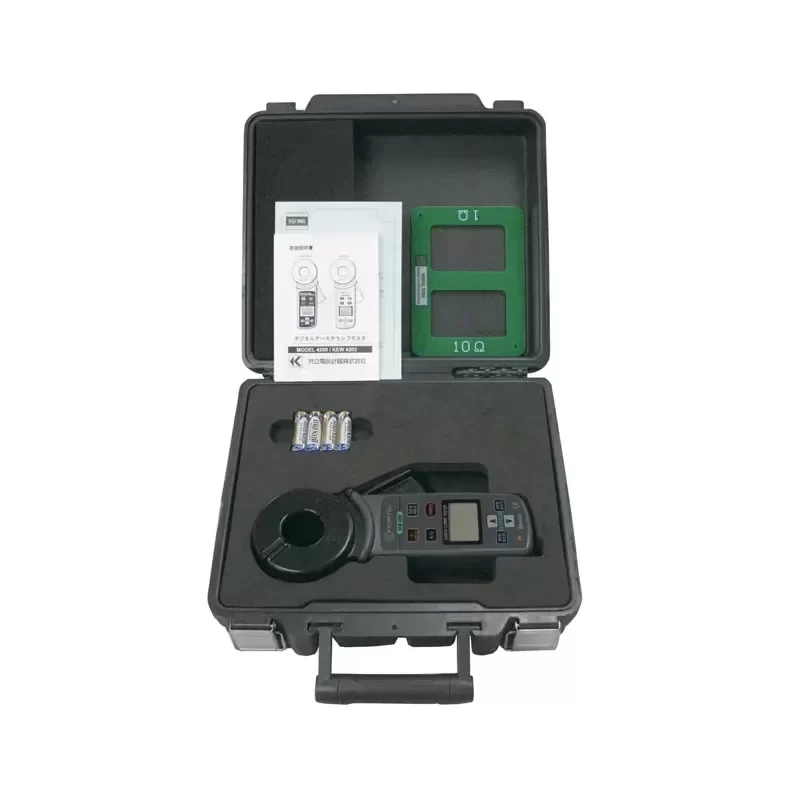

Kyoritsu 4202 Earth Clamp Meter 1.5% Accuracy 30.0A Measuring Current

Description

The Kyoritsu 4202 is a professional-grade Earth Clamp Meter engineered for precision ground resistance and AC leakage current measurement in complex electrical networks. Manufactured in Japan, this instrument represents Original Engineering at its highest standard, providing reliable diagnostics for multi-grounded systems without the need for auxiliary earth spikes or circuit disconnection.

Technical Specifications:
Brand: Kyoritsu
Model Number: 4202
Equipment Type: Digital Earth Resistance Clamp Meter
Place of Origin: Japan
Earth Resistance Ranges: 20.00Ω, 200.00Ω, 1500Ω (Auto Range)
Resistance Accuracy: ±1.5%
AC Current Ranges: 100.0mA, 1000mA, 10.00A, 30.0A (Auto Range, 50Hz/60Hz)
Current Detection Frequency: 2400Hz
Maximum Conductor Size: Ø32 mm
Display Type: Digital Only
Operating Temperature: -10°C to 50°C
Measurement Time: Approx. 5 hours continuous (R6 battery)
Dimensions: 246 x 120 x 54 mm
Net Weight: 780 g
Gross Package Weight: 2.000 kg
Single Package Size: 32 x 25 x 14 cm

System Architecture and Integration:
This model integrates advanced filtering and True RMS technology to ensure accurate readings even in the presence of distorted waveforms and electrical noise commonly found in heavy industrial environments. Technical Compatibility is maximized through its robust jaw design, accommodating grounding conductors up to Ø32 mm. The internal logic features an automated noise check function that instantly detects stray currents impacting earth resistance measurements, ensuring absolute data fidelity during critical inspections.

Industrial Application:
Designed specifically for multi-grounded infrastructure, the Kyoritsu 4202 solves critical diagnostic challenges in telecommunications cell towers, electrical utility substations, and automated manufacturing plants. By allowing maintenance engineers to measure earth resistance directly on the grounding strap without isolating the circuit, it drastically reduces facility downtime and enhances operator safety. Standard Lead Time applies for global procurement, ensuring rapid deployment for preventative maintenance schedules.

Key Attributes
Measuring Voltage Range: .
Place of Origin: Japan
Model Number: 4202
Brand Name: Kyoritsu
Dimensions: 246 x 120 x 54 mm
Display Type: Digital Only
Measuring Capacitance Range: .
Measuring Current Range: 30.0A
Measuring Inductance Range: .
Measuring Resistance Range: 20.00Ω 200.00Ω 1500Ω
Operating Temperature: -10 to 50°C
Weight: 780 g
Product name: Kyoritsu Clamp Meter
Model: 4202
Earth Resistance Auto Range Ranges: 20.00Ω 200.00Ω 1500Ω
Accuracy: ±1.5%
AC Current Auto Range (50Hz/60Hz) Ranges: 100.0mA 1000mA 10.00A 30.0A
Current Detection Frequency: 2400Hz
Measurement Time R6: Approx. 5 hours
Dimensions: 246 x 120 x 54 mm
Weight Approx: 780 g

Packaging and Delivery
Selling Units: Single item
Single package size: 32X25X14 cm
Single gross weight: 2.000 kg
