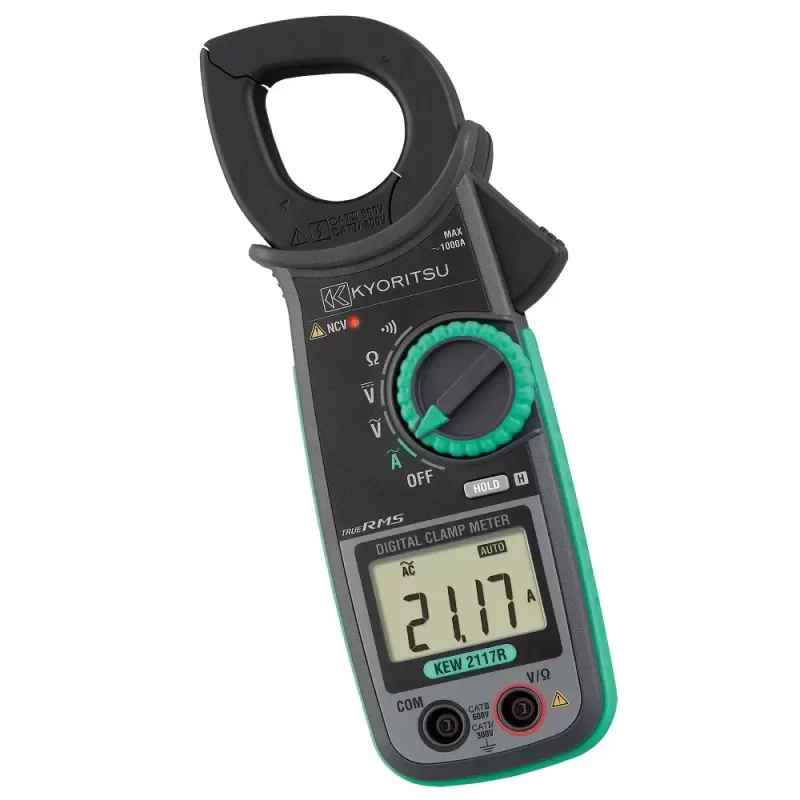

Kyoritsu KEW2117R AC Digital Clamp Meter True RMS 1kHz

Description

The Kyoritsu KEW2117R is a professional-grade AC Digital Clamp Meter engineered for high-accuracy current and voltage diagnostics in demanding electrical environments. Manufactured in Japan, this instrument features True RMS measurement capabilities, ensuring precise readings on distorted or non-sinusoidal waveforms commonly found in modern industrial facilities with variable frequency drives and solid-state electronics. The ergonomic teardrop-shaped jaw design facilitates easy access in crowded cable trays and tight distribution panels.

Technical Specifications:
Brand: Kyoritsu
Model Number: KEW2117R
Measurement Type: True RMS AC Digital Clamp Meter
AC Current Range: 600.0A / 1000A Auto-ranging
AC Voltage Range: 600.0V
Resistance Range: 600Ω
Continuity Buzzer: Active at 600Ω
Frequency Response: 40Hz to 1kHz
Maximum Conductor Size: Ø33 mm
Display Type: Digital LCD
Safety Category: IEC 61010-1 CAT IV 300V, CAT III 600V
Operating Temperature: -10°C to 50°C
Power Source: 2 x 1.5V AAA Batteries
Dimensions: 204 x 81 x 36 mm
Net Weight: 220 g
Gross Weight: 1.200 kg
Package Dimensions: 29 x 15 x 10 cm
Place of Origin: Japan

Industrial Application:

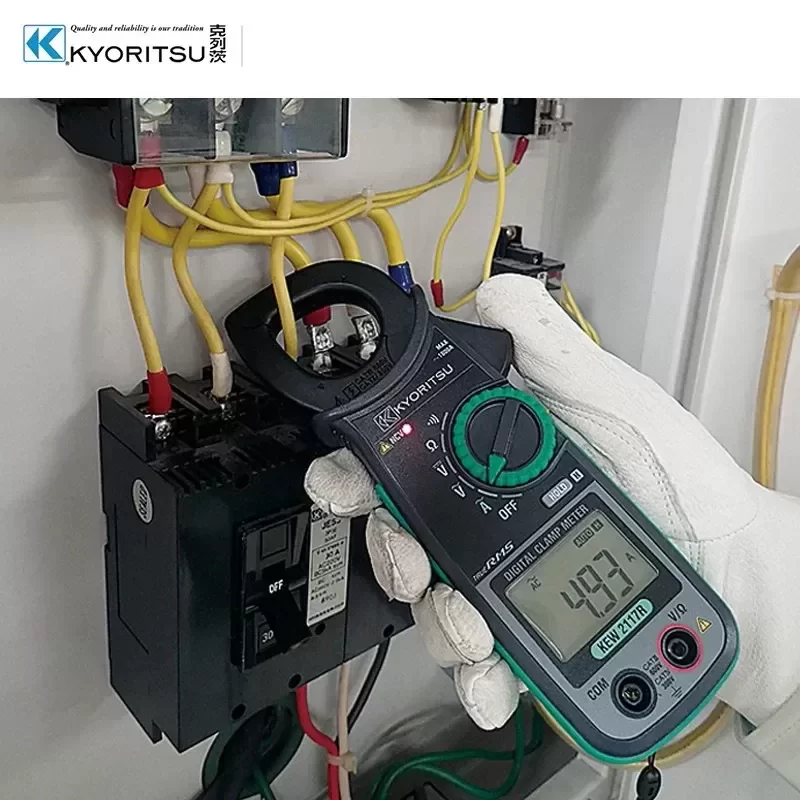

The KEW2117R is specifically designed for electrical maintenance and troubleshooting in commercial HVAC systems, motor control centers, and power distribution grids. Its True RMS capability and 1kHz frequency response solve the critical problem of inaccurate current measurements caused by harmonic distortion from nonlinear loads, such as inverters and switching power supplies. The robust CAT IV 300V safety rating allows technicians to safely perform diagnostics at the primary supply level.

Procurement and Integration:
This unit guarantees Original Engineering from Kyoritsu, ensuring long-term reliability and strict adherence to international safety standards. Technical Compatibility is assured across standard low-voltage AC networks and industrial control panels. We maintain optimized inventory protocols to minimize Lead Time, providing rapid deployment of brand-new, factory-calibrated testing equipment to your facility.

Key Attributes
Measuring Voltage Range: 600.0V
Place of Origin: Japan
Model Number: KEW2117R
Brand Name: Kyoritsu
Dimensions: 204 x 81 x 36 mm
Display Type: Digital Only
Measuring Capacitance Range: ,
Measuring Current Range: 600.0/1000A
Measuring Inductance Range: ,
Measuring Resistance Range: 600Ω
Operating Temperature: -10 to 50℃
Weight: 220 g
Product name: Kyoritsu Clamp Meter
Model: KEW2117R
AC A: 600.0/1000A (Auto-ranging)
AC V: 600.0V
Frequency Response: 40 to 1kHz
Continuity Buzzer: 600Ω
Power Source: 2 x 1.5V AAA Batteries
Dimensions: 204 x 81 x 36 mm
Weight: 220 g

Packaging and Delivery
Selling Units: Single item
Single package size: 29X15X10 cm
Single gross weight: 1.200 kg
