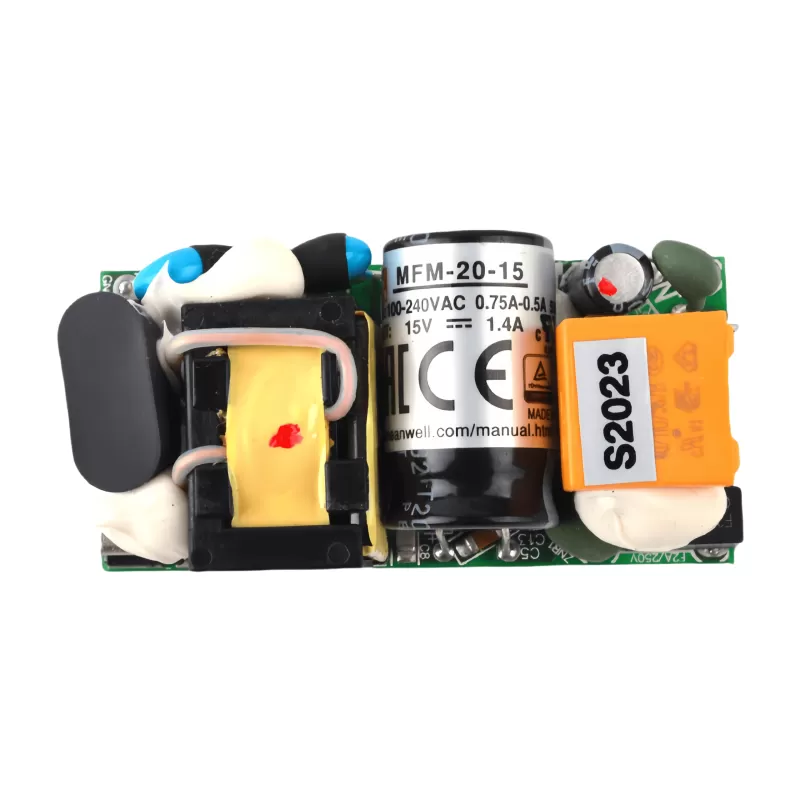

MeanWell MFM-20-15 20W Green Medical Substrate Type Power Supply

Description

The Mean Well MFM-20-15 is a highly reliable, 20W high-density AC-DC medical grade substrate type power supply. Engineered for direct PCB mounting, this module ensures seamless Technical Compatibility with space-constrained medical and industrial devices. Featuring Original Engineering by Mean Well, it delivers a stable 15VDC output with an ultra-low no-load power consumption of less than 0.075W. With a standard Lead Time optimized for global supply chains, this power module is designed for continuous operation in mission-critical environments.

Technical Specifications
Brand: Mean Well
Model Number: MFM-20-15
Power Supply Type: AC-DC Medical Substrate (PCB Mount)
Output Power: 20W
Output Voltage: 15VDC
Output Current: 1.33A
Input Voltage Range (AC): 80 to 264VAC
Input Voltage Range (DC): 113 to 370VDC
Input Frequency: 47 to 63Hz
Efficiency: 87%
No-Load Power Consumption: < 0.075W
Isolation Level: 2xMOPP
Leakage Current: < 80 microAmps
Operating Temperature: -40°C to +85°C

Protection and Compliance
Short Circuit Protection: Auto-recovery
Overload Protection: 110% to 150% rated output power
Overvoltage Protection: Clamp by zener diode
Over Temperature Protection: Auto-recovery
Safety Certifications: IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1

Physical Specifications
Dimensions: 49.0 x 23.8 x 23.0 mm
Weight: 0.028 kg
Format: Open frame / Substrate type

Application Scenario
The MFM-20-15 is specifically engineered for Type BF (Body Floating) medical equipment, clinical laboratory instruments, and portable medical monitors. Its compact 49.0 x 23.8 mm footprint and 2xMOPP isolation rating solve critical space and patient safety constraints in handheld diagnostic devices, ensuring strict compliance with global medical safety standards while maintaining high energy efficiency.

Key Attributes
Input Voltage: 80 ~ 264VAC 113V ~ 370VDC
Output Voltage: 15 V
Place of Origin: Jiangsu, China
Model Number: MFM-20-15
Brand Name: MEANWELL
Application: Industry, CCTV, Led Lighting, Smart Home, Laboratory, 3D Printer, Industrial Equipment
Output Frequency: 47 ~ 63Hz
Output Type: Other
Protection: Short Circuit Protection, Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection
Type: AC-DC

Packaging and Delivery
Selling Units: Single item
Single package size: 4.9X2.38X2.3 cm
Single gross weight: 0.028 kg
