Description

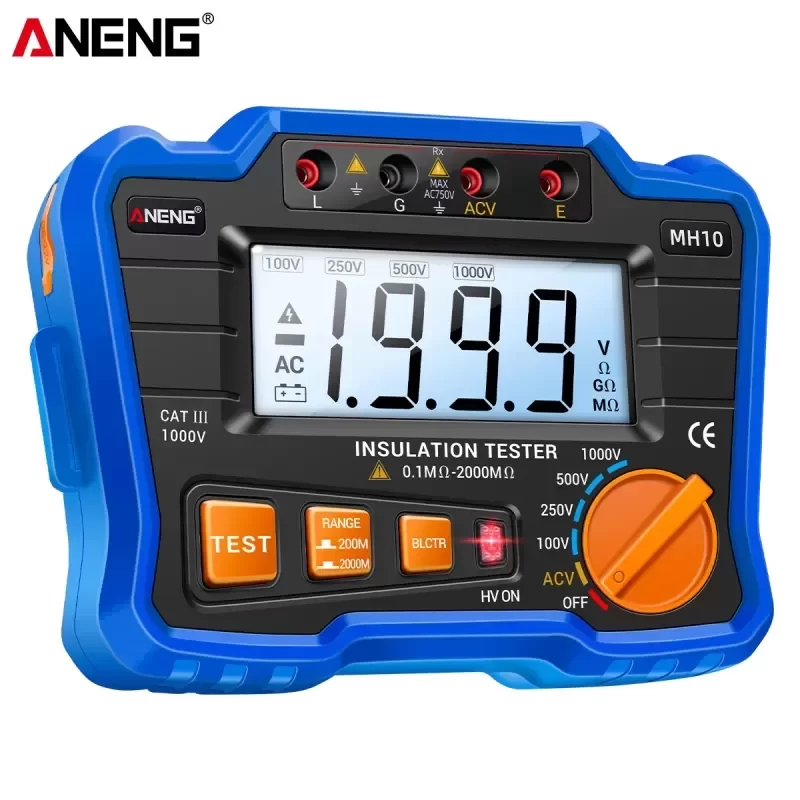

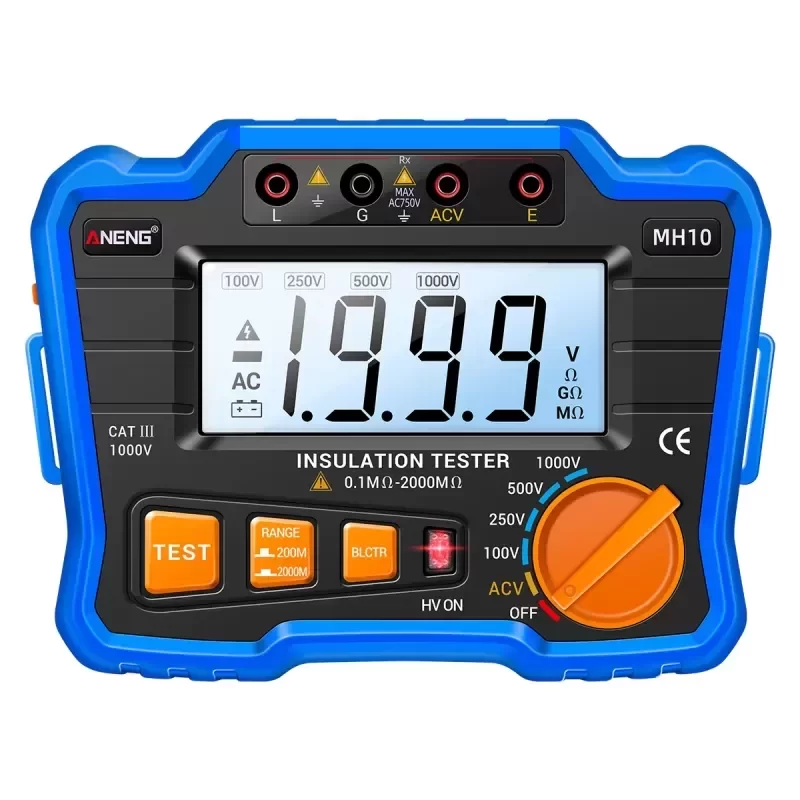

The MH10 Digital Megohm Meter is a precision insulation resistance tester engineered for rigorous industrial diagnostics and preventative maintenance. Designed to evaluate the dielectric integrity of cables, transformers, switchgear, and motor windings, this instrument delivers reliable quantitative data to prevent catastrophic electrical failures. By offering selectable testing voltages from 100V to 1000V, the MH10 ensures Technical Compatibility across a wide spectrum of low to medium voltage electrical systems.
In critical industrial scenarios, such as commissioning new electrical installations or conducting routine safety audits on aging infrastructure, the MH10 provides engineers with immediate, high-fidelity insulation resistance readings up to 1999 MΩ. The device maintains a short-circuit current of ≥ 1mA, ensuring rapid charging of capacitive loads for faster, more accurate stabilization of readings. Built to Original Engineering standards, the robust enclosure protects internal circuitry against harsh environmental factors, operating efficiently in temperatures ranging from -25 to 45 °C.
Technical Specifications:
Model Number: MH10
Display Type: Digital Only
Testing Voltages: 100V, 250V, 500V, 1000V
Output Voltage Tolerance: 90% to 110%
Measuring Range: 0.1 MΩ to 1999 MΩ
Accuracy Class: ±10%
Short-Circuit Current: ≥ 1mA
Internal Insulation Resistance: ≥ 500 MΩ at 1000V
Operating Temperature Range: -25 °C to 45 °C
Calibration Temperature: 23 ± 5 °C
Test Humidity Range: 45% to 75% RH
Dimensions: 160 x 125 x 85 mm
Weight: 500 g
Color Scheme: Orange and Blue
Place of Origin: Guangdong, China
Single Package Dimensions: 22 x 19 x 8 cm
Single Gross Weight: 0.900 kg
Procurement and integration of the MH10 insulation tester streamline maintenance workflows. With optimized Lead Time and standardized testing protocols, this digital megohmmeter serves as an essential diagnostic tool for certified electricians and facility engineers demanding accurate, repeatable insulation profiling.
Key Attributes
Accuracy Class: ±10%
Current Range: /
Insulation Resistance: 2000 MΩ
Measuring Range: 0.1M-1999M
Testing Voltage: 100V, 250V ,500V, 1000V
Place of Origin: Guangdong, China
Model Number: MH10
Dimensions: 160*125*85(mm)
Display Type: Digital Only
Operating Temperature: -25~45
Measuring range: 0.1MΩ to 1999MΩ
Appearance size: 160*125*85(mm)
Weight: 500g
Operating Temperature: 23 ± 5℃
Test humidity: 45~75%RH
Output voltage: 90%~110%
Short-circuit current: ≥ 1mA
Insulation resistance: ≥ 500 MΩ (1000 V)
Color: Orange and blue
Accuracy Class: ±10%
Packaging and Delivery
Selling Units: Single item
Single package size: 22X19X8 cm
Single gross weight: 0.900 kg
