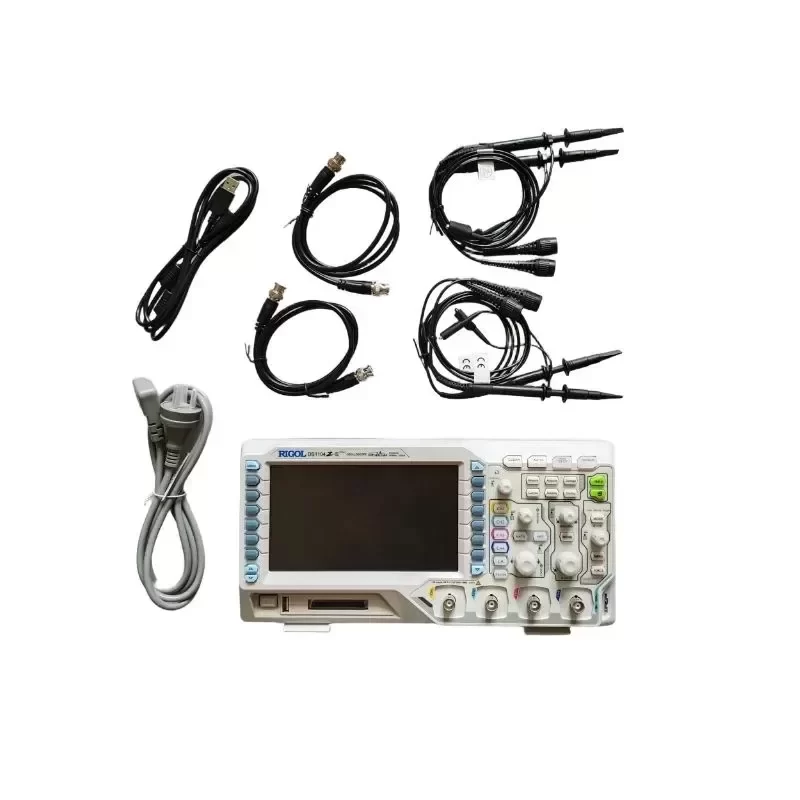

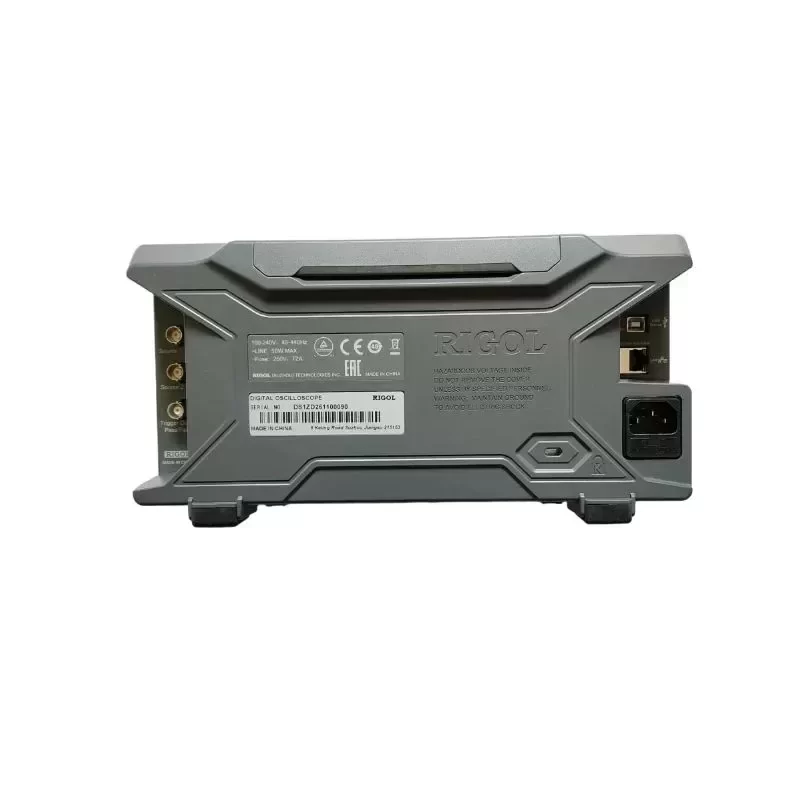

ROGOL DS1104Z-S Plus 100 MHz Digital Oscilloscope 4 16 Channel Testing Equipment

Description

The RIGOL DS1104Z-S Plus is a high-performance 100 MHz digital oscilloscope engineered for complex research and development environments. Utilizing proprietary UltraVision technology, this unit delivers deep memory and high waveform capture rates to isolate rare anomalies in mixed-signal embedded systems.

As an MSO-ready Plus model with the -S designation, it features 4 analog channels, supports 16 digital channels via logic probes, and integrates a dual-channel 25 MHz waveform generator. This ensures seamless Technical Compatibility across diverse testing frameworks, from microcontroller debugging to power supply analysis.

Specifically designed for industrial R&D and embedded system diagnostics, the DS1104Z-S Plus excels in serial protocol analysis and mixed-signal troubleshooting. Its 30,000 wfms/s capture rate allows engineers to detect transient glitches and runt pulses in high-speed digital communications that standard oscilloscopes routinely miss. Backed by Original Engineering standards, this testing equipment guarantees precision and reliability for critical diagnostic workflows. Contact us to confirm current Lead Time and customized software reengineering support for your specific laboratory requirements.

Technical Specifications:
Brand: RIGOL
Model: DS1104Z-S Plus
Equipment Type: Mixed Signal Digital Oscilloscope
Bandwidth: 100 MHz
Analog Channels: 4
Digital Channels: 16 (MSO ready)
Integrated Signal Source: 2-Channel 25 MHz Waveform Generator
Real-time Sample Rate: 250 MSa/s
Maximum Memory Depth: 12 Mpts standard
Maximum Waveform Capture Rate: 30,000 wfms/s
Bandwidth Limit: 20 MHz
Vertical Accuracy: ±4%
Input Voltage Range: 100 V to 240 V AC
Protection Class: IP65
Display: 7.0 inch WVGA TFT LCD
Technology: UltraVision
Origin: China
Warranty: 1 Year

Physical and Packaging Data:
Package Dimensions: 48 x 35 x 29 cm
Gross Weight: 4.000 kg
Selling Unit: Single item

Key Attributes
Type: Digital Oscilloscope
Accuracy: ±4%
Place of origin: China
Customized support: Software Reengineering
Power: 100MHz
Protection Class: IP65
Voltage: 100 V to 240 V
Brand name: RIGOL
Application: Research and development
Warranty: 1 years
Bandwidth: 100MHz
Channels: 4
Maximum Memory Depth: 12Mpts standard
Maximum Waveform Capture Rate: 30,000wfms/s
Real-time Sample Rate: 250 MSa/s
Bandwidth Limit: 20 MHz

Packaging and Delivery
Selling Units: Single item
Single package size: 48X35X29 cm
Single gross weight: 4.000 kg
