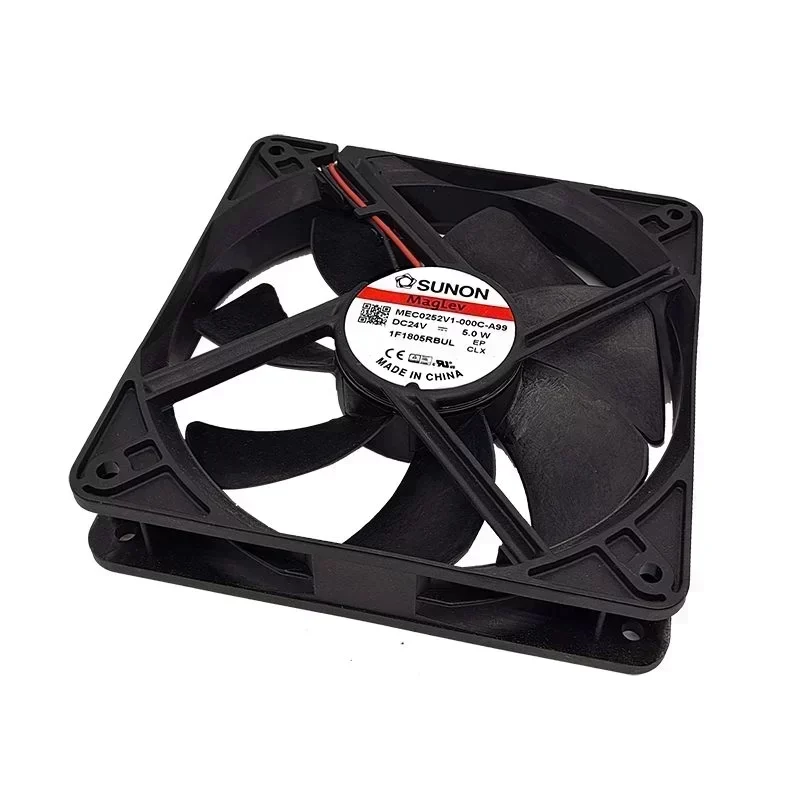

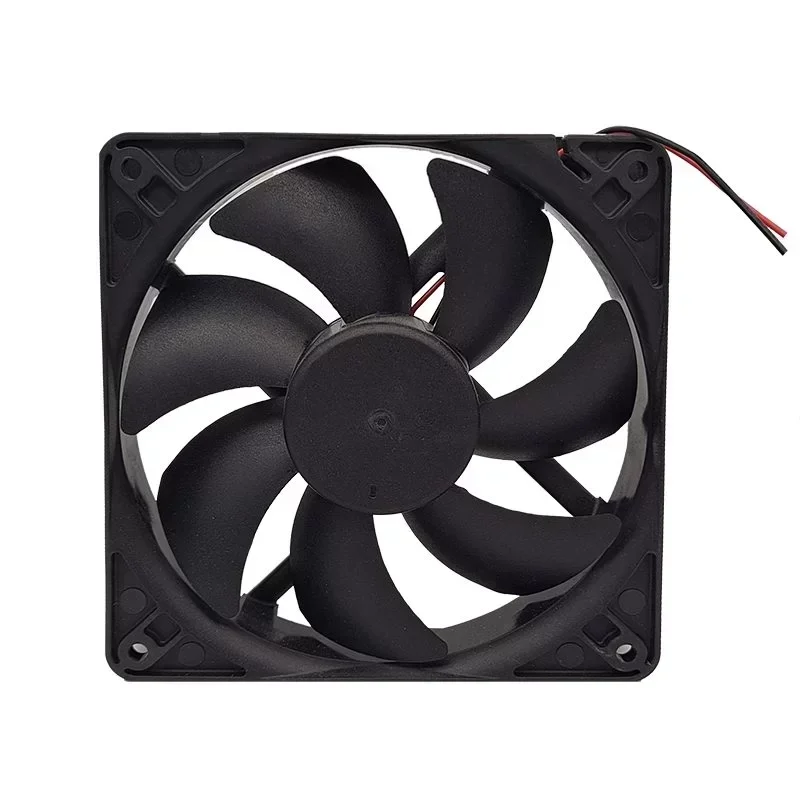

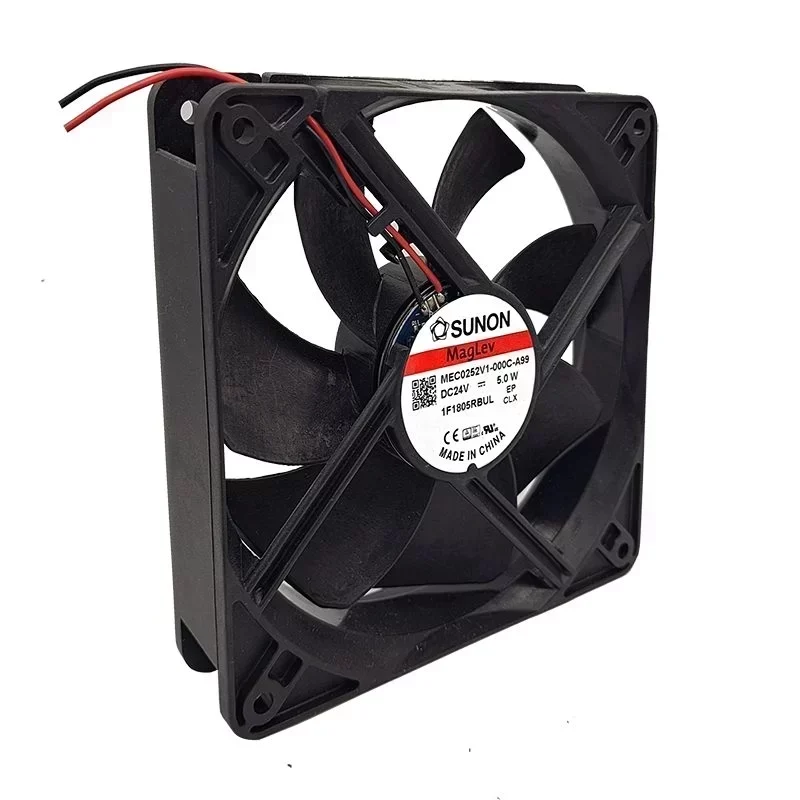

SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM
SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM
SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM
SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM

SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM

$8.00

SKU: 1601564486501 Brand:

Description

The SUNON MEC0252V1-000C-A99 is a high-performance DC axial fan engineered for critical thermal management in industrial and telecommunications environments. Utilizing SUNON proprietary Vapo Bearing technology, this unit eliminates direct friction between the shaft and bearing, significantly extending operational lifespan and reducing acoustic noise compared to traditional ball bearing designs. The 120mm form factor delivers a substantial airflow of 108.2 CFM, making it optimized for high-impedance systems requiring rapid heat dissipation.

Technical Specifications:
Manufacturer: SUNON
Model Number: MEC0252V1-000C-A99
Series: ME Series
Bearing System: Vapo Bearing (MagLev Technology)
Rated Voltage: 24 VDC
Operating Voltage Range: 10 – 27.6 VDC
Rated Current: 0.21 A
Power Consumption: 5.0 W
Rated Speed: 3100 RPM ± 10%
Airflow: 108.2 CFM (3.06 m³/min)
Static Pressure: 0.28 Inch-H2O
Acoustic Noise: 44.5 dB(A)
Dimensions: 120mm x 120mm x 25mm
Impeller Material: Thermoplastic PBT (UL94V-0)
Frame Material: Thermoplastic PBT (UL94V-0)
Weight: 162 g
Operating Temperature: -10°C to +70°C
Life Expectancy: 60,000 Hours at 40°C
Safety Approvals: UL, CUR, TUV, CE
Protection: Auto Restart, Polarity Protection

Industrial Application:
This unit is specifically calibrated for forced convection in 24V power supply units, server rack enclosures, and industrial automation control cabinets where continuous operation is mandatory. The high static pressure capability ensures effective cooling through dense component layouts and filters. The Vapo bearing design makes it particularly suitable for environments sensitive to dust ingress and mechanical wear.

Procurement Data:
We guarantee Original Engineering specifications for seamless integration into existing thermal subsystems. Contact our support team to verify Technical Compatibility with specific OEM controllers or to inquire about current Lead Time for bulk procurement.

Key Attributes
Voltage: 24 V
Material: Plastic
Speed: 3100RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: VAPO Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: SUNON
Model number: MEC0252V1-000C-A99

Packaging and Delivery
Selling Units: Single item

SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM

SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM

SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM

SUNON MEC0252V1-000C-A99 Axial Fan VAPO Bearing Plastic Blades 120x120x25MM 24VDC 5W 108.2CFM 3100RPM

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
